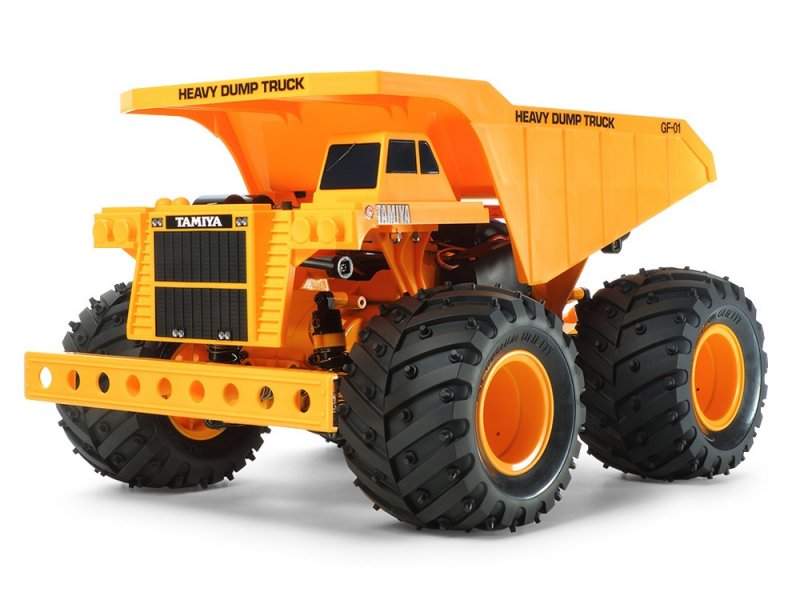

Tamiya 58622-60A - 1/24 Heavy Dump Truck (GF-01) (w/o ESC)  [58622-60A]

• Tamiya 58622 Heavy Dump Track GF-01 chassis
• Reproduce the “heavy dump” active in large-scale construction website realistic!
• Big tire fitted, off road feature of 4 x4 unique. Anywhere you run around in comical cheerfully. An ultra-large automobiles associated with large-scale construction those sites such as for example mines and dam construction finished up being modeled “heavy dump”. A fantastic design in to the effective that besides a dump car traveling in regards to the fundamental road, high power feeling of scale ended up being furthermore reproduced in enough ABS resin human anatomy. Cab (cab) plus vessel (the bed) usually it will always be feasible to produce in state as split components, which raised the vessel ordinarily an attribute connected with dump. The framework gather an elevated popularity in comical and crazy journey can be used “GF-01 framework.” Molding color linked to framework not merely the human body ended up being also a yellow image of much gear, it will likely be enjoyable to try finish. The tire designed with a large-diameter monster enhance tires, design furthermore went additionally crazy, it is appealing is jammed sort of pastime RC unique.
• Length: about 350 mm
• overall width: about 270 mm
• Height: about 210mm four-wheel drive GF-01 framework, designed with a large tire in
• Square setup fashioned with a motor during the lightly energy enough monocoque framework, front plus in gear GF-01 framework that used kit drive 4WD for transmitting power to your tires. Nearly matching to “square” setup may be the ratio of the wheel base and tread furthermore features. Kit situation of framework one-piece, shut to shut from sand and pebbles. You create a smooth cornering and a differential gear. Suspension dual wishbone 4-wheel split made with friction damper. Sets the steering servo towards the framework left component, it shows the management traits without training by isometric 2-piece tie rod.
• The image is a prototype.

Specifications:

• Scale: 1/24
• Construction type: setup kit
• Terrain use: Multi-Purpose
• Drive-train 4WD
• Drive kind: Gearbox
• Drive line: puppy bone
• Differential kind: Gear
• Suspension: Fully split twin wishbone
• Steering system: Bell-crank
• Shock damper: Friction damper
• Shock damper product: Plastic
• Tire sort: Rubber
• Tire tread: Lug/pin-spike
• Body item: ABS Plastic
• Chassis item: Plastic
• Electronic Speed Control (ESC): never ever INCLUDED
• ESC model: TBLE-02S
• LED Light buckets: No
• LED lights: No
• Motor: 540-brushed type
• Bearings: plastic bushing
• Adjustable camber: Fixed
• Adjustable toe views: Front only
• Adjustable ground approval: Fixed
• Adjustable gear ratio: Fixed
• Adjustable wheelbase: Fixed
• Adjustable track width: Fixed
• Adjustable shock angle: Fixed
• Special function 1: Length: 350mm, Width: 270mm, Height: 210mm
• Special function 2: The practical injection-molded resin body features split cab and back rest elements.
• Special function 3: Alternate rear rest between flat and raised roles by changing the placement regarding the 2 remains and snap pins in the body mounts. Note: it's not motivated to put things in the straight back remainder, or drive the model alongside it elevated.
• Special function 4: Chassis and deep rim wheel elements are molded in yellow for a regular appearance.
• Special function 5: The 4WD GF-01 framework provides an incredible feeling of big scale, and uses front part and right back differentials in sealed gearboxes included inside frame.
• Special function 6: 4-wheel double wishbone suspension system system system system system makes use of friction dampers.
• Special function 7: The &39;square&39; setup framework employs comparable tread (194mm) and wheelbase (174mm) lengths.
• Special function 8: Torque-tuned motor is roofed.
• Special function 9: includes 115mm-diameter tires.
• Requires A: 2-channel radio gear & ESC
• Requires B: 7.2 battery & charger
