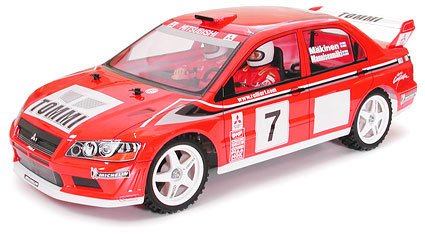

Tamiya 58286 - 1/10 Mitsubishi Lancer Evolution VII WRC (TB01)  [58286]

This revolutionary item first competed in 11th occasion about the 2001 WRC period in Sanremo. Unlike the axioms for Group the, which do not enable major deviations through manufacturing variation, Group N allows extreme alterations including modification of engine positioning and revamping of car mechanics. Underneath the tips of Group N, Mitsubishi's brand-new device retained exactly the same basic kind once the manufacturing variation but had its guts redesigned for pure rally battle.

The TB-01 Chassis- Optimizing durability and drive-efficiency

For increased drive performance the framework employs a longitudinally generate engine additionally shaft drive plus the full number of ball-bearings. The sturdy, hardened resin main and top structures are set shock-absorbing oil dampers and split 4-wheel double wishbone suspension system system system system that delivers top managing over dust. Designed for superior control, the framework features the most truly effective center of gravity for unrivaled security, and block pattern semi-pneumatic synthetic tires provide superb traction both on-road and over light dirt areas.

Fundamental requires

• Chassis Type: TB-01
• Scale: 1/10
• general Length: 446mm
• fundamental Height: 145mm
• fundamental Width: 185mm
• Minimal Clearance: 13mm
• bodyweight totally prepared: 1770g (including TP-S3003 servo, CPR device, engine, RC2400SP battery power)
• Wheelbase: 257mm
• Tread (front and back): 157mm
• Chassis Material: ABS
• Chassis Type: bathtub framework
• Steering Tie Rods: split in three parts
• suspension system system (front side and straight back): double wishbone
• Caster Angle (f/r): 10 deg./0 deg.
• Camber Angle (f/r): adjustable
• Toe Angle (f/r): variable/2 deg.
• Dampers (f/r): CVA Mini Oil Dampers
• Drive Train: longitudinally mounted motor/shaft driven 4WD
• Gear Ratio: 9.91:1(kit standard)
• Diff. Gear System (f/r): three bevel diff
• Speed Controller: technical price controller included
• Tire Width (f/r): 27mm
• Tire Diameter (f/r): 69mm
• Tread Pattern (f/r): rally block Type 540 motor included
• Kit contains complete bearings

separately Available Things (needed)

• RC product: Adspec GT-I or 2-channel RC system with electronic price control
• Battery: Tamiya 7.2V Racing Pack or comparable
