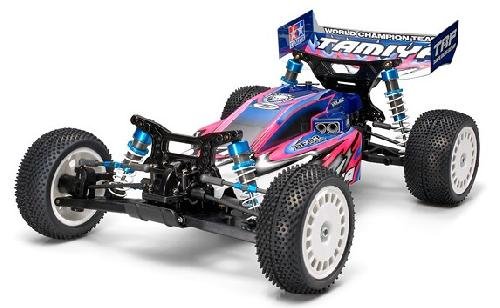

Tamiya 84370 - 1/10 RC DF-03 MS Chassis Kit  [84370]

The mid-range shaft-driven 4WD buggy DF-03 framework ended up being produced from rushing information, as well as the DF-03 MS kit took its abilities one action further by suitable a myriad of choice elements. Using a slipper clutch, assembly universal shaft and center one-way set boost drivetrain effectiveness and offer razor-sharp maneuvering, while 4-wheel double wishbone suspension system system enables a selection of settings.

This restricted edition buggy features a framework which filled with performance boosting elements and a Dark impact body shell with exclusive markings developed by TRF motorist Satoshi Maezumi.

These Hop-Up-Options are included:

• 53791 DF-02 Assembly Universal Shaft
• 53924 DF-03 Heat Sink Bar Set
• 53925 DF-03 Slipper Clutch Set
• 53926 DF-03 Aluminum Damper Set
• 53931 DF-03 Center One-Way Set
• 53940 DF-03 Involved Turnbuckle Shaft Set
• 53941 DF-03 Aluminum Turnbuckle Steering Rod
• 53948 DF-03 Aluminum One-Piece Propeller Cup Joint
• 53949 DF-03 Lightweight Battery Stopper Pin
• 53984 Buggy Racing Wing
• 51000 Hi-Torque Servo Saver (Ebony)

Specification

• Scale : 1/10
• Construction type : installation kit
• Terrain use : off-road
• Drive-train : 4WD
• Drive sort : shaft
• Drive line : dog bone
• Differential kind : ball anxiety plate
• Suspension : entirely split twin wishbone
• Steering device : bell-crank
• Shock damper : oil-filled damper
• Shock damper item : aluminum
• Tire sort : perhaps not included
• Tire tread : n/a
• Body product : Polycarbonate
• Chassis product : plastic
• Electronic Speed Control (ESC) : not included
• ESC model : n/a
• LED Light buckets : no
• LED lights : no
• Engine : not included
• Bearings : shielded ball bearing
• Adjustable camber : yes
• Adjustable toe views : front part just
• Adjustable ground approval : yes
• Adjustable gear ratio : yes
• Adjustable wheelbase : fixed
• Adjustable track width : fixed
• Adjustable shock angle : yes
• Special function 1 : Length:388mm, Width: 250mm , Height: 152mm, Wheelbase:272mm, Tread:217mm (front component) & 203mm (backside)
• Original function 2 : 2 kinds of wing and marking stickers are inside the kit.
• Needs A : 7.2 battery pack & charger
• Requires B : 2-channel radio gear, ESC, motor
• Requires C : polycarbonate paint
• Needs D : tires
