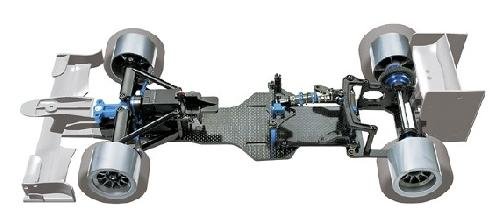

Tamiya 58534 - 1/10 RC F104 ver.II Pro Chassis Kit - F104V.2  [58534]

• The current F104 variation II framework includes a Pivot Ball Link straight back Suspension (PBLR) like one situated on the RM-01 framework. Set alongside the previous 3-point T-bar back suspension system system system system, this new setup allows more accurate modifications of chassis' pitch and roll characteristics. Besides, the PBLR suspension system system system system features a center pivot ball, an aluminum pitch damper to temper chassis pitch movement, and an aluminum roll damper and component links to handle framework roll. The modern design also increases overall traction and greater high speed cornering capability. The proven F104 front suspension system system remain intact, which features master pin coil springs the suspension system system arranged.

The next Hop-Up options are available the kit:

• 3mm Carbon Fiber Lower Deck
• 3mm Carbon dietary fiber reduced brace
• 3mm Carbon Fiber body-mount meal
• 2mm Carbon Fiber Upper Deck (front/rear)
• 3x35 Aluminum Turnbuckle Shafts (azure) x2
• groundbreaking Aluminum Diff housing (uses TRF417 diff bands)
• Item 54342 RM-01 Aluminum Roll Damper set
• Item 54341 RM-01 Aluminum Pitch Damper set
• Item 54240 F104 Clamp Type Wheel hub
• Item 54209 5x5mm Aluminum Hex Head Ball Connector (fluorine coated)
• Item 54202 F104 Aluminum Upper Suspension Mount
• Item 54161 F104 Minimal Friction Suspension Ball Set
• Item 54159 Aluminum Horn for Hi-torque servo saver (F104)
• Item 53900 04 Module Spur Gear Set (93T/104T)
• Item 53601 minimal Friction 5mm Adjuster (8pcs.)
• Item 53599 Fluorine Coated 5mm Aluminum Ball Connector (10pcs.)
• Item 51000 Hi-Torque Servo Saver (black colored colored colored)
• Item 50509 F1 Front Spring Set

Specs and qualities:

• Scale: 1/10 scale
• Construction type: setup kit
• Terrain usage: on-road
• Drive-train: 2WD
• Drive sort: pinion to spur gear
• Drive line: solid axle
• Differential sort: ball anxiety dish
• suspension system system: PBLR (Pivot Ball Link right back Suspension)
• Steering procedure: direct servo
• surprise damper: oil-filled damper
• surprise damper product: aluminum
• Tire sort: perhaps not inluded
• Tire tread: n/a
• Body product: n/a
• ESC: perhaps not included
• ESC type: n/a
• LED Light buckets: no
• Light-emitting Diode lights: no
• motor type: not included
• Bearings: shielded ball bearing
• Chassis item: carbon dietary fiber meal
• Sticker item: n/a
• Internal gear ratio:
• Adjustable camber: front part simply
• Adjustable toe angles: front side simply
• Adjustable journey height: yes
• Adjustable gear ratio: yes
• Adjustable wheelbase: yes
• Adjustable track width: fixed
• Adjustable shock angle: yes
• Anti-squat modification: n/a
• Droop modification: n/a
• Original features: 3.0 mm carbon framework
• calls for: 7.2 battery pack, charger
• needs: polycarbonate paint
• Requires: radio gear, servo, receiver
• Requires: tires, tires, human anatomy set, motor, esc
