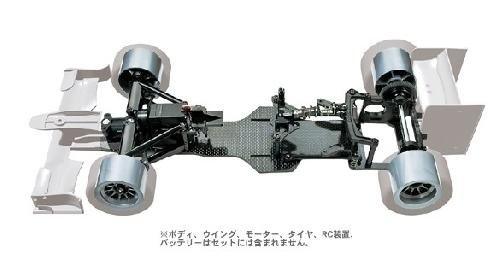

Tamiya 84336 - 1/10 RC F104 Ver.II v.2 Pro Chassis Kit Black Special  [84336]

Towards F104 variation II:

This brand new F104 variation II framework includes a Pivot Ball Link right back Suspension (PBLR) like one situated on the RM-01 chassis. Set alongside the previous 3-point T-bar straight back suspension system system system, this new setup allows more accurate changes regarding chassis' pitch and roll characteristics. More over, the PBLR suspension system system features a center pivot ball, an aluminum pitch damper to mood chassis pitch movement, and an aluminum roll damper and part links to modify framework roll. The newest design additionally increases general traction and will be offering greater extreme rate cornering capability. The proven F104 front suspension system remain intact, which features master pin coil springs the suspension system system system set up.

Specs & Features

• Scale: 1/10 scale
• Construction type: construction kit
• Terrain usage: on-road
• Drive-train: 2WD RWD
• Drive kind: pinion to spur gear
• Drive line: solid axle
• Differential kind: ball force dish
• Suspension: split front/solid axle backside
• Steering unit: direct servo
• Shock damper: oil-filled damper
• Shock damper item: aluminum
• Tire type: not included
• Tire tread: slick
• Body product: Polycarbonate
• Chassis product: carbon dietary fiber plate
• Electronic Speed Control (ESC): maybe not included
• ESC model: n/a
• LED Light buckets: no
• LED lights: no
• Motor: not included
• Bearings: shielded ball bearing
• Adjustable camber: yes
• Adjustable toe views: front component only
• Adjustable ground approval: yes
• Adjustable gear ratio: yes
• Adjustable wheelbase: fixed
• Adjustable track width: fixed
• Adjustable shock angle: yes
• Special function 1: Pivot-Ball Link straight back (PBLR) suspension system system system
• Unique function 2: Aluminum elements anodized in black colored colored colored colored
• Special function 3: Carbon reduced deck 3.0mm dense
• Needs: 2-channel radio gear
• Needs: 7.2 battery power & charger
• Requires: tires, tires, body set, motor, esc
• Needs: engine
