Tamiya 58294 - 1/10 R/C High Performance F201 w/Original  [58294]

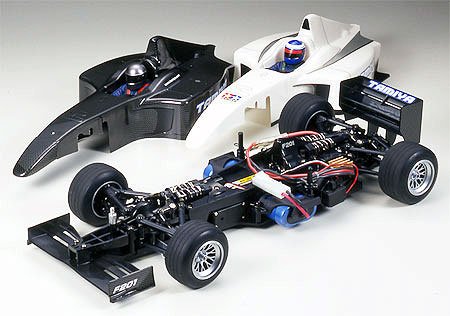

This is the 1/10 Scale electric, rc, 4 Wheel Drive
Tamiya F201 Chassis On-Road car Kit.

FACULTIES:

Chassis: Monocoque synthetic F201 kind.
Drive: Four wheel shaft drive.
Motor: RS 540 sport tuned.
Ball Bearings: Complete set included.
Shocks: Oil-filled synthetic bodied.
Gearbox: Closed front side and rear.
Differentials: Planetary gear.
Transmission: Single-speed.
Tires: 1.18" (30mm) tread width, 2.4" (62mm) outside diameter, 1.5"
(38mm) inside diameter synthetic treaded.
Wheels: 1" (25.5mm) width, 1.6" (40mm) inside diameter grey plastic
spoke.
Speed Control: included, utilize electronic sort for a few effortlessly useful performance.
Bumpers: Front and straight back black colored colored plastic.
Suspension: Adjustable.
Camber Tie Rods: Adjustable. Camber may be the angle where the tires
sit vertically.
Steering Tie Rods: Adjustable. Caster/Toe-in concerns the angle
that the tires aim inwards because seen from above.
Steering: Bell-crank kind.
Servo Saver: Included.
Body: One clear plus one Lexan Carbon Fiber Pattern human anatomy with black
plastic straight back spoiler.

INCLUDES: One Tamiya F201 Chassis with oil-filled shocks, 540 stock engine,
one evident and another polycarbonate patterned human body, treaded rubber
tires, foam inserts, plastic mesh tires, guidelines, antenna
tube, decal sheet, equipment, one driver helmet for every single body,
20 enamel steel pinion gear, 55 enamel synthetic spur gear, surprise oil.

NEEDS: broadcast: 2-Channel with one servo.
Radio Batteries: (8) AA size
Speed Control: Electronic.
Battery: 6-cell flat with standard connector, 7 mobile will not fit.
Charger: AC/DC timed or top for 6-cell battery
Paint: Spray or brush-on for polycarbonate synthetic bodies.
Misc. Products: Building and track gear

SPECS: VEHICLE-
Length: 16.7" (425mm)
Width: 7.7" (196mm)
Height: 3.3" (100mm)
fat: 3.3 pounds (1480g)(approx.)
Wheelbase: 11.2" (280mm)
Gear Ratio: 2.75:1
Tires- Front and right back: 1.18" (30mm) tread width, 2.4" (62mm) outer
diameter, 1.5 (38mm) internal diameter plastic treaded.
BODY-
Length: 14.5" (368mm)
Width: 6.25" (159mm) at cockpit (widest point)
1.25" (32mm) at from tires (thinnest point)
Height: 3.34" (85mm)

FEEDBACK: For Substitution Ball Bearings use:
Qty. Size location Bearing Set Qty.
(4) 10 x 15mm Ball Diffs
(4) 8 x 5mm Ball Diffs
(2) 8 x 12mm Gearbox
(1) 5 x 11mm Gearbox
(1) 5 x 10mm Gearbox
(2) 10 x 15mm back Uprights
(2) 8 x 5mm Steering Arms
(2) 10 x 15mm Front Uprights
(2) 5 x 11mm Drive Shaft
(1) 5 x 10mm Drive Shaft
(1) 5 x 8mm Drive Shaft
(4) 6 x 12mm tires
