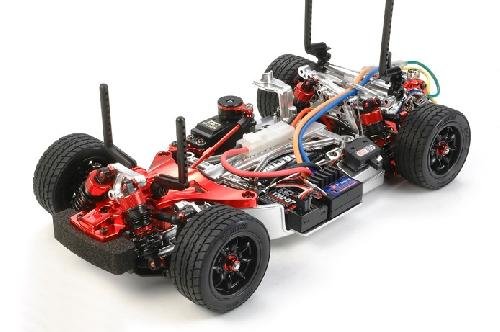

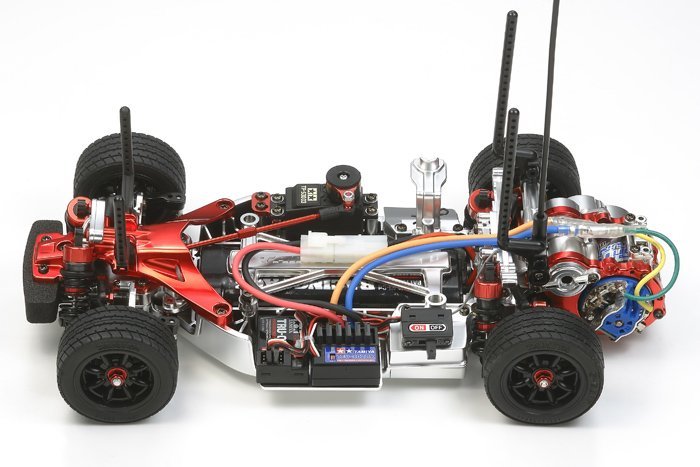

Tamiya 84312 - 1/10 RC M06R Chassis Kit - M06 [84312]

Price:

CAD$285.32

Brand:

Tamiya

Model:

84312

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
R/C Models - On-Road - M-Chassis Cars category

Write a review

alt="Tamiya 84312 - 1/10 RC M06R Chassis Kit - M06" title="Tamiya 84312 - 1/10 RC M06R Chassis Kit - M06"

Description

This refined, race-spec form of the M-06 chassis has a tailored rear suspension system system with such features as clamp-type upright lots for improved traction and repositioned dampers for considerably more spirited administration. M-Chassis aluminum oil-filled dampers are included and include specially-designed damper pistons. The kit in addition includes numerous option elements including aluminum turnbuckle steering rods and touring automobile damper springs.

Original Elements

Clamp-Type Upright Weights
Rear Damper Mounts
3-Hole Damper Pistons

Unique Red Anodized Parts

Aluminum Dampers
Aluminum back Uprights
Aluminum Flange Lock Nuts
Aluminum Turnbuckle Steering Rod
Aluminum 5mm Ball Connectors
Aluminum Servo Mount
Aluminum Horn for Hi-Torque Servo Saver
Aluminum Steering Posts & Aluminum Steering Post Stays
Aluminum 3x18 Turnbuckle Shafts
Aluminum 3x23 Turnbuckle Shafts

Matte-silver Plated Parts

Frame
A components (Steering)
B Parts
D Parts (Gear Situation)
E Parts (Damper Keep)

Other Selection Parts

Hi-Torque Servo Saver (Ebony
Complete Ball Bearings

Specs and Features

Scale: 1/10 scale
Construction type: construction kit
Terrain usage: on-road
Drive-train: 2WD RWD
Drive kind: gearbox
Drive line: dog bone
Differential sort: gear
Suspension: entirely split double wishbone
Steering procedure: bell-crank
Shock damper: oil-filled damper
Shock damper product: aluminum
Tire sort: maybe not inluded
Tire tread: n/a
Body item: n/a
ESC: not included
ESC type: N/A
LED Light buckets: no
Light-emitting Diode lights: no
Engine kind: not included
Bearings: shielded ball bearing
Chassis product: synthetic
Sticker item: n/a
Internal gear ratio:
Adjustable camber: yes
Adjustable toe views: front part only
Adjustable journey height: yes
Adjustable gear ratio: yes
Adjustable wheelbase: yes
Adjustable track width: fixed
Adjustable shock angle: yes
Special features: Multi-colored synthetic elements and several Option components
Needs: 7.2 battery power & charger
Needs: radio gear, servo, receiver
Needs: polycarbonate paint
Requires: tires, tires, human anatomy set, engine, esc
