Tamiya 58235 - RC McLaren Mercedes MP4/13 - F103RS  [58235]

Tamiya 58235 - RC McLaren Mercedes MP4/13 - F103RS
Price:
CAD$0.00
Brand:
Tamiya
Model:
58235
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - On-Road - Formula Cars category
Write a review

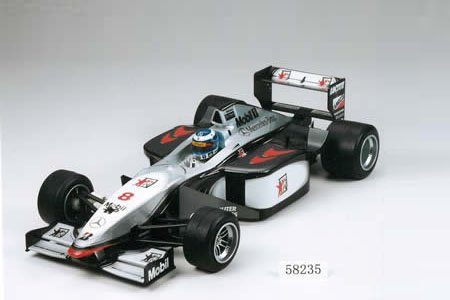

Electrical broadcast Control vehicle installation Kit in line with the 1998 F1 Grand Prix Championship automobile, McLaren Mercedes MP4/13. Its lightweight yet rigid polycarbonate body comes with a realistically reproduced front side and straight back wing plus component mounted deflectors. Includes Germany GP markings FRP framework includes lightweight, simple half-double deck for responsive running. Automobile comes standardly high in high precision ball differential gear for smooth cornering. Chassis is likewise balanced on right and left edges, further boosting cornering. Features left/right separate suspension system system system on front side and 3-point suspension system system with friction damper on back designed with strengthened battle slicks Tires created using one-piece aramid soluble fbre gear, heightening rigidity and traction. Is sold with 540-type motor

Specs

  • Overall size: 397mm
  • Overall width: 201mm
  • Overall height: 97mm
  • Minimum approval: 7mm
  • Car fat: 660g
  • Weight ready: 1110g
  • Wheel base: 260mm
  • Tread (front/rear): 170mm/155mm
  • Chassis product: 2.5tFRP
  • Chassis sort: half-double deck
  • Steering tie-rods of equal size permit main servo mounting.
  • Front suspension system system system: master pin/coil spring
  • Rear suspension system: rigid/T-bar
  • Caster angle (front/rear): 6/0�
  • Camber angle (both front/rear): 0�
  • Toe angle (front/rear): 0� (adjustable) /0�
  • Rear damper: adjustable friction damper
  • Drive system: side-winder/direct drive
  • Gear ratio: 3.7:1
  • Diff. gear system: ball diff. Front tire width/diameter 30/56
  • Rear tire width/diameter: 45/58
