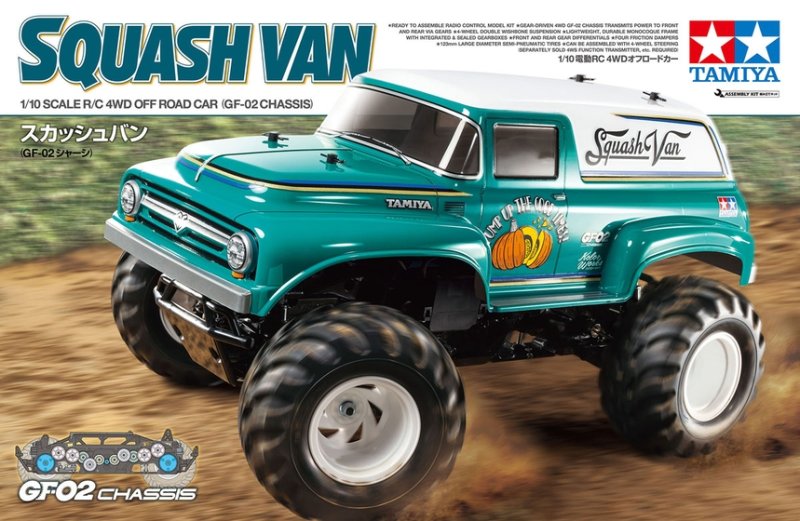

Tamiya 58725-60A - 1/10 RC Squash Van (GF-02) (without ESC) [58725-60A]

Price:

CAD$182.44

Brand:

Tamiya

Model:

58725-60A

GTIN:

4950344587254

Condition:

Brand New

Quantity:

Write a review

alt="Tamiya 58725-60A - 1/10 RC Squash Van (GF-02) (without ESC)" title="Tamiya 58725-60A - 1/10 RC Squash Van (GF-02) (without ESC)"

Description

The Squash Van is our latest fun-to-drive big tire car which affected by 1950’s United States panel vans. The polycarbonate human body shell sits furthermore new gear-driven 4WD GF-02 framework, which will be a variant connected to comical GF-01. Due to the fact GF-01 framework features a comical design, the GF- 02 framework employs a practical wheelbase and a frame with ladder and pipeline motifs.

GF-02 chassis
The gear-driven 4WD GF-02 framework features its motor in a low, primary destination in the lightweight, durable monocoque framework, and transmits capability to front and straight back via gears. The long wheelbase and wide tread setup ensure stable off road performance. The slim frame features ladder/pipe motifs and features integrated sealed gearboxes that basically keep stones out. Front side and back gear differentials permit smooth cornering, while independently provided pinion gears provide a range from three kinds of gear ratios, and a motor guard improves reliability down road. The 4-wheel double wishbone suspension system system employs four friction dampers, meaning steering servo is founded on the left with identical-length tie-rods.

• 1/10 R/C installation kit. Wheelbase: 267 mm
• Front/Rear tread: F: 223mm / R: 221mm.
• V-Block pattern Block Tires 122.8mm diameter.
• Gear Ratios: 18T (18.03: 1), 20T (16.23: 1), 17T (19.09: 1) Kit includes 18 enamel pinion gear.
• 4WS-four-wheel steering suited to individually offered third-party 4WS function radio.
• Body post spot just like long wheelbase CC-02 framework.
• Includes 540 brushed type motor and ESC.

• essential to finish: 2-channel radio, steering servo, 7.2-7.4volt battery with suitable charger, and Tamiya PS paint.

Specification:

Adjustable Gear Ratio : Yes
Bearings : plastic bushing
Body Material : Polycarbonate
Body Stickers : Included
Chassis Material : ABS Plastic
Chassis Type : GF-02
Construction Type : Assembly Kit
Differential Type : Gear
Drive Type : 4WD
Electronic Speed Control (esc) : Includes HobbyWing THW 1060 Brushed motor ESC (2-3S)
Motor : 540-brushed type
Required to do : 2-channel radio, steering servo, 7.2-7.4volt battery & battery pack charger, and Tamiya PS paint.
Scale : 1/10
Shock Damper : Friction type
Suspension : completely split Double Wishbone
Terrain usage : Multi-Purpose
