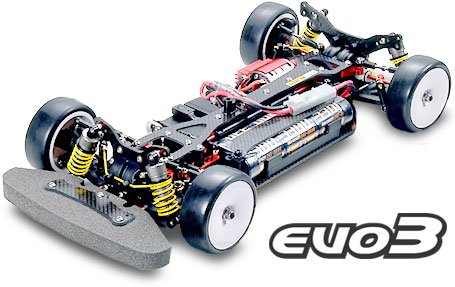

Tamiya 49283 - 1/10 RC TB Evo.3 Surikarn Ltd. - Limited Edition - TB Evolution III Chassis  [49283]

Tamiya is proud to supply the TB Evolution III that allowed Surikarn Chaidejsuriya to simply take the triumph both in Modified Class and stock Class through the Thailand Overseas Touring vehicle Championship that happened last February. This limited version kit is released to celebrate these great victories and supply champion system performance. TB Evolution III Surikarn Limited framework employs numerous particularly developed elements and option elements. A pure racer exclusively available! When the greatest degree of R/C framework development gets with all the option and particularly developed elements utilized by the best R/C racer on earth, the result is absolutely absolutely nothing below quality. It features a 3mm thick paid down deck (Standard Evo. III features 2.5mm thick reduced deck) generate a low center of gravity (paid down stability). Red anodized components enhance the machine's "hot" seems.

Presenting Surikarn Style

• Red anodized aluminum elements
• Titan hex screws and titan turnbuckle shafts
• Rubber sealed ball bearings
• 3 mm dense reduced deck
• strengthened diff. joint with right back lightweight universal shafts
• SOREX tires (36R)
• Newly produced aluminum top supply mount
• Newly designed front/rear unique damper stay
• Newly produced carbon meal for one-way item
• Evo III unique stickers
• a whole new packaging

fundamental specs

• Total size: 365mm
• Total width: 190mm
• Clearance: 5mm, weight Fully-Equipped: 1,440g (dimension includes TP-S3003 servo, CPR unit and RC2400SP Battery with RS-540 engine)
• Wheelbase: 259mm
• Tread F/R: 163mm
• Chassis Material: Carbon
• Chassis Shape: Double-Deck Frame
• Steering Tie Rod: 3 component
• suspension system system: Front and straight back Double Wishbone
• Caster Angle-F/R: 4deg/0deg
• Camber Angle-F/R: adjustable
• Toe Angle-F/R: adjustable/2 to 3.5deg
• Skid angle-F/R: both 0deg (adjustable)
• Damper: F/R TRF Super Minimal Friction Dampers
• Drive train: Shaft-Driven 4WD
• Gear Ratio: 7.34:1, 6.88:1 (Standard in kit)
• Diff. gear system: F/R One-Way/Ball-Diff
• Speed Controller: Electronic Speed Controller
• Tire Width: F/R both 24mm
• Tire Diameter: F/R both 64mm
• Tread Pattern: F/R Slicks.

necessary products (maybe not included)

• Body
• RS-540 Type engine
• R/C device: Adspec GT-I or 2-channel R/C system with electronic cost controler
• Battery: Tamiya 7.2V Racing Pack or comparable
