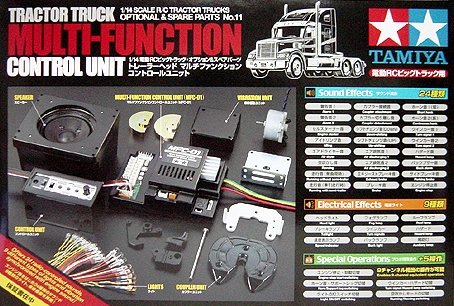

Tamiya 56511 - 1/14 R/C Tractor Truck Multi-Function Control Unit MFC-01 (MFU)  [56511]

Has 24 radio-controlled noises, 9 several kinds of lights and vibration synchronized with motor sound.The Trinity of appears, Lights, and Vibration creates Maximum Authenticity.

Electric impact: (20 LED for 9 light functions)

All lights utilized because of the multi function item are high brightness sort LED. They're accustomed reproduce headlights, spot lights, roof lamps, rate indicators, fog lights, right back lamp, end lights and blinkers/hazard lights, that could be turned on/off due to the transmitter.

• Mind light
• Fog lamp
• Roof lamp
• Speed indicator
• Turn signals
• Hazard lamp
• Tail lamp
• Straight right back lamp
• Aux light

Sound effect: (24 Radio-Controlled Sound videos)

• Alarm
• Engine beginner
• Idling
• Air dryer
• Revving
• Operating without semi-trailer
• Running with semi-trailer
• Coupler accessory Coupler detachment
• Down-shifting
• Up-shifting
• Air discharging 1
• Air discharging 2
• Exhaust brake
• Braking System
• Quick horn
• Constant horn
• Turn indicator 1
• Turn sign 2
• Hazard
• Straight straight back alarm
• Parking brake
• Engine end
• Alarm 2

Optional components Usable at the same time:

• Item: 56502 Semi-trailer Light Set
• Item: 56505 Motorized help thighs
• Note:Tractor car electric Device Set(Item: 56501),Tractor Truck Sound effect Set,and Components included into these things is typically not uesd with or replaced using this device.

Notes:

• Always utilize 540 Type motor a fundamental piece of kit otherwise the electronic rate controller on MFC-01 item may malfunction.
• With framework, right back lamp, front part and right back auxiliary lights, and/or cost indicator can not be started up.
• Some framework need additional holes for installation. Take full advantage of 4mm pin vise to make holes.

Required RC System

• 4 Channel transmitter (self-neutral stick sort with 4 channel trims), a 4ch-receiver and 2 servos (3 servos are necessary whenever developing 56505 Motorized Assistance Feet). No electrical price controller is essential as MFC-01 product covers that function.Receiver battery (6V) just isn't needed.
• Transmitter which function click-touch kind trims may cause difficulty whenever using with tamiya Multi-Function services and products.
• Some connectors may not be suitable.Modification may be required.
• Wheel trigger kind transmitter or one without trims should not be utilized at all.
• PCM receiver , multi-channel receiver aside from the older SANWA receivers (with black colored colored colored situation) are not made for this kit.
• whenever buying MFC-01 item into main-stream vehicle models, servo expansion cables may be needed. Utilize expansion cables (offered individually) to be sure fundamental cable size becomesmore than 50cm
