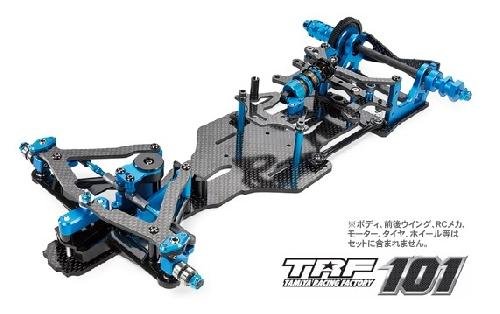

Tamiya 42252 - 1/10 RC TRF101 Chassis Kit  [42252]

• Here is the new TRF101 chassis kit designed for the most Formula One R/C race lover.
• In line using the F104 Ver.II framework, it is a longitudinal power packs location, and features a carbon lower deck and paid down brace. The trunk suspension system features a center pivot ball and L/R side links with pitch and roll dampers. Small modifications are made to your suspension system system with all the current usage of different viscosities of oil and springtime hardness.
• Leading suspension system system features a brand new one-piece carbon top supply design which assists heighten cornering performance. Besides, the framework is very customizable as a result of a newly-designed motor mount, linkage components alongside modification features that have been modified for ultimate Formula One competition performance.

Specs and Features:

• Scale : 1/10
• Construction sort : make kit
• Terrain use : on-road
• Drive-train : 2WD
• Drive type : pinion to spur gear
• Drive line : solid axle
• Differential type : ball force plate
• Suspension system : front kingpin coil springtime independent suspension system system/solid axle backside
• Steering system : direct servo
• Shock damper : oil-filled damper
• Shock damper product : aluminum
• Tire sort : not included
• Tire tread : n/a
• Body product : perhaps not included
• Chassis product : carbon soluble fiber plate
• Electronic Speed Control (ESC) : maybe not included
• ESC model : n/a
• LED Light buckets : no
• LED lights : no
• Motor : not included
• Bearings : shielded ball bearing
• Adjustable camber : yes
• Adjustable toe views : front side only
• Adjustable ground approval : yes
• Adjustable gear ratio : yes
• Adjustable wheelbase : fixed
• Adjustable track width : fixed
• Adjustable shock angle : yes
• Special function 1 : Features newly-designed right back carbon shaft, stoppers, motor mount, links and most essential chassis
• Unique function 2 : Uses aluminum HL roll friction damper and TRF damper for pitch and roll
• Special function 3 : right back suspension links are put in 3 settings
• Unique function 4 : Carbon fibre front upper A-arm
• Special function 5 : Adjustable aluminum front side steering uprights
• Special function 6 : unique Aluminum diff housing and left hub provider
• Special function 7 : Low-profile servo and standard size servo are used
• Unique function 8 : 1.5 and 2.5 camber angle adjustment
• Unique function 9 : Aluminum servo horn
• Unique function 10 : Carbon axle
• Needs A : 2-channel radio gear
• Requires B : 7.2 battery pack & charger
• Requires C : polycarbonate paint
• Needs D : tires, tires, human anatomy set, engine, esc

Hop-Ups:

• Tamiya(#84353) - TRF101 Titanium Screw Set
