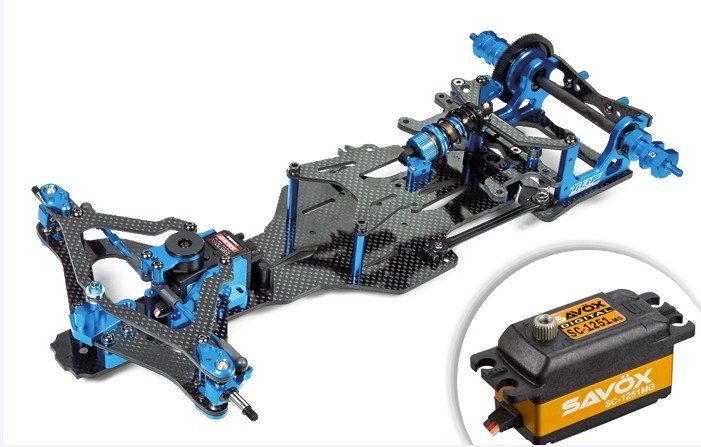

Tamiya 42279COMBO - 1/10 RC TRF101W Chassis Kit with Savox - SC-1251MG High Speed Servo Combo Set  [42279COMBO]

About RC TRF101W

• The Tamiya Racing Factory is here up with a new variation in regards to the TRF101. The "Wide-tread" Specification, designated in the event that TRF101W F1 framework kit, is ideally matched higher rate racing circuits. The TRF101W advantages of the TRF team's number of racing experience and data. It keeps most initial fundamental shows of TRF101 framework while including a couple of improvements to transform the maximum suspension system system into a wide-tread device to really make the chassis appropriate "foam-tire" competition. Other tweaks have actually a 2.5mm level main framework to help make the vehicle more adaptable to low hold areas alongside a modification towards damper spot to make initial dampening more efficient.

brand new traits:

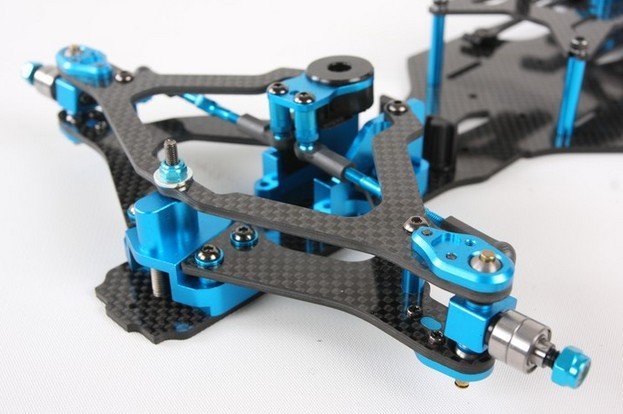

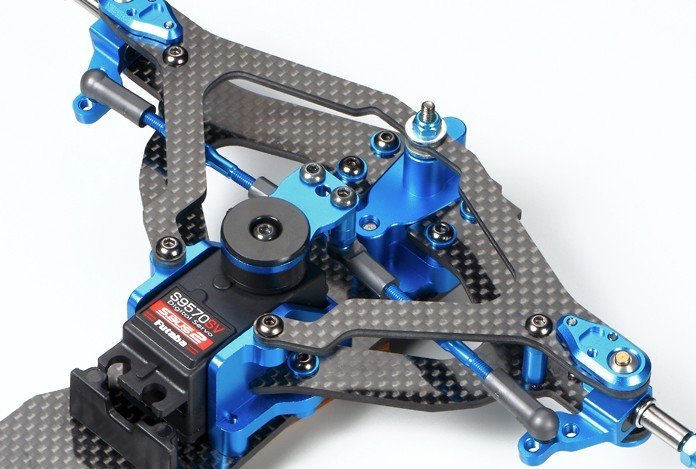

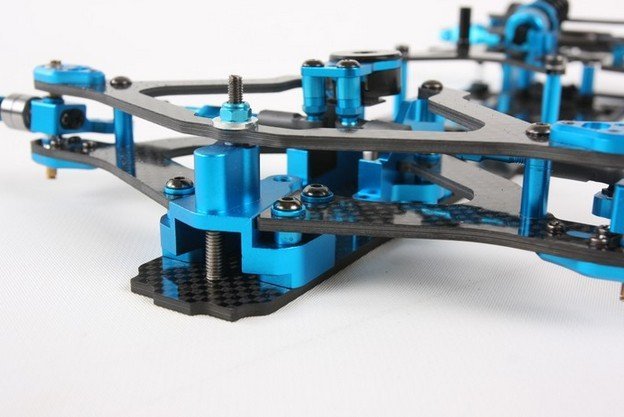

• Revamped front suspension system system hands: The redesigned carbon soluble fbre top supply piece is hitched with carbon fiber paid fingers to generate the framework excellent durability and increase the product's controllability. Leading suspension system system system mount and aluminum servo stay are often redesigned the TRF101W framework.

• Better Flexibility: The thickness of the carbon fiber repaid deck happens to be paid to 2.5mm to produce greater framework freedom, that may provide enhanced security on low-grip areas. Battery articles are relocated ahead, going pitch lots nearer on leading regarding the item and boosting front component traction.

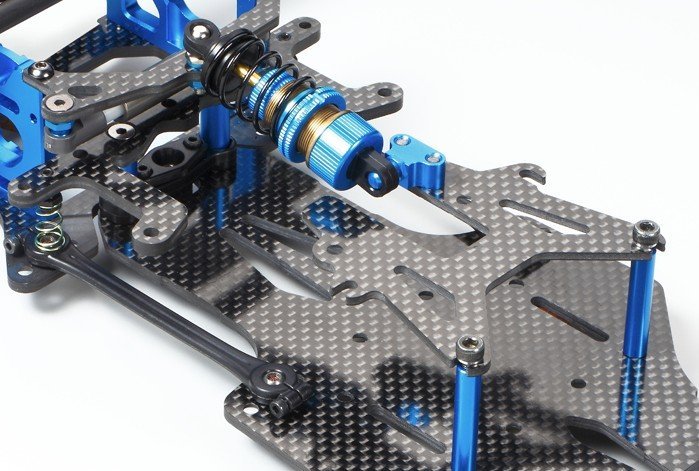

• Smoother, faster dampening: The newly-designed center brace moves the pitch damper accessory spot 2.5mm on backside, causing faster effect and keeping the auto nearby the track area. The roll damper employs a fresh piston with equal contraction and expansion lengths for smoother performance.

Specs:

• Scale 1/10

• Construction type: setup kit

• Terrain use: On-Road

• Drive-train: 2WD

• Drive kind: Pinion to spur gear

• Drive line: Solid axle

• Differential sort: Ball anxiety plate

• Suspension: separate front/solid axle backside

• Steering system: Direct servo

• Shock damper: Oil-filled damper

• Shock damper item: Aluminum

• Tire kind: maybe not included

• Tire tread: N/A

• Body product: not included

• Chassis item: Carbon fibre dish

• Electronic Speed Control (ESC): not included

• ESC model: N/A

• LED Light buckets: No

• LED lights: No

• Motor: N/A

• Bearings: Sealed ball bearing

• Adjustable camber: Front just

• Adjustable toe views: Front just

• Adjustable ground approval: Yes

• Adjustable gear ratio: Yes

• Adjustable wheelbase: Fixed

• Adjustable track width: Fixed

• Adjustable surprise angle: Yes

• Unique function 1: Newly-designed top supply piece, front suspension system mount, servo stay, center brace and roll damper.

• distinctive function 2: magnificent: Lower hands are in reality created from carbon fibre product.

• distinctive function 3: ideal for square-shaped battery power packages including shorty packages.

• Special function 4: The pivot-ball hyperlink back suspension system system system has 3 different component hyperlink accessory jobs for fine environment alterations.

• Special function 5: 2.5mm thick Carbon Fiber Lower Deck

• Special function 6: Aluminum motor Mount

• Special function 7: TRF Damper

• Special function 8: integral Diff meal and right back Shaft

• Unique function 9: Track width with F103 foam tires: F: 198mm R: 198mm

• Special function 10: Track width with F104 synthetic tires: F: 198mm R: 180mm

• Needs A: 2-channel radio gear

• Needs B: 7.2 battery & charger

• Needs C: Wheels, tires, human anatomy set, engine, esc

About the Savox - SC-1251MG minimal Profile Tall Speed Metal Gear Digital Servo

• Here is the Savox SC-1251MG Minimal Profile Tall Speed Metal Gear Digital Servo

Qualities:

• Super high 4096 quality and metal gears.

• Super light-weight.

• Coreless engine provides higher level, amazing effectiveness, and low power usage than comparable servos.

• The aluminum situation design not simply appears good but additionally assists procedure to remain cool and smooth.

• Our servos are totally green - from materials to manufacturing, these servos are eco-friendly.

• Ideal as a steering servo for 1/10 area applications including in gliders and airplanes which have slim wing profiles.

Technical Specs:

• Dimensions(mm): 40.8X20.2X25.4

• Weight(g): 44.5

• Speed(@4.8V sec/60): .10

• Torque(@4.8V oz-in): 97.2

• Speed(@6.0V sec/60): .09

• Torque(@6.0V oz-in): 125.0

• Gear: Steel

• Bearing: 2BB

• Situation: Aluminum

• Running present (at no load): 150 mA @ 4.8V

• Operating present (at no load): 180 mA @ 6.0V

• Stall current (at locked): 2000 mA @ 4.8V

• Stall current (at locked): 3000 mA @ 6.0V

• Idle present (at stopped): 5 mA @ 4.8V

• Idle current (at stopped): 5 mA @ 6.0V

• Limit angle: 200 degree +-10 level

• Connector wire measure: 22 AWG

• Connector cable size: 300 +-5 mm

• Horn gear spline: 25T

• Control system: Pulse width modification

• Amplifier type: Digital controller

• Operating Travel: 100 degree (whenever 1000u->2000usec)

• Basic spot: 1500 usec

• Dead musical business width: 5 usec

• Rotating means: Clockwise (when1500->2000 usec)

• Pulse width range: 700->2300 usec

• Optimum travel: Approx 160 level (when700->2300 usec)
