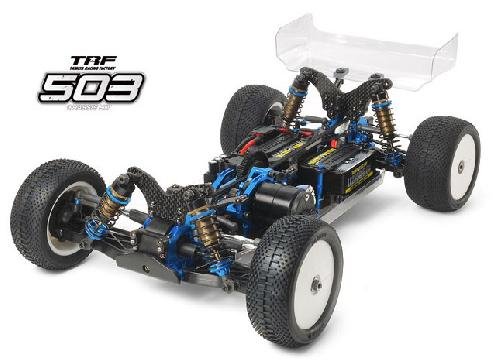

Tamiya 42275 - 1/10 RC TRF503 Chassis Set  [42275]

Here is the brand new TRF503 4WD rushing buggy. The 503 originated thanks to your Tamiya rushing Factory team all over again putting its significant battle and evaluation experience to work with for Tamiya’s rushing enthusiast consumers. The TRF503 off road framework is an updated and modified as a form of the TRF511 that claims to possess more traction and improved cornering capability.

Specification

• Scale : 1/10
• Construction sort : construction kit
• Terrain use : off-road
• Drive-train : 4WD
• Drive kind : belt
• Drive line : universal
• Differential sort : sealed oil-filled gear
• Suspension : completely separate twin wishbone
• Steering procedure : bell-crank
• Shock damper : oil-filled damper
• Shock damper item : aluminum
• Tire kind : perhaps not included
• Tire tread : n/a
• Body item : Polycarbonate
• Chassis product : carbon fiber plate
• Electronic Speed Control (ESC) : not included
• ESC model : n/a
• LED Light buckets : no
• LED lights : no
• Motor : maybe not included
• Bearings : shielded ball bearing
• Adjustable camber : yes
• Adjustable toe views : front component and rear
• Adjustable ground approval : yes
• Adjustable gear ratio : yes
• Adjustable wheelbase : fixed
• Adjustable track width : fixed
• Adjustable surprise angle : yes

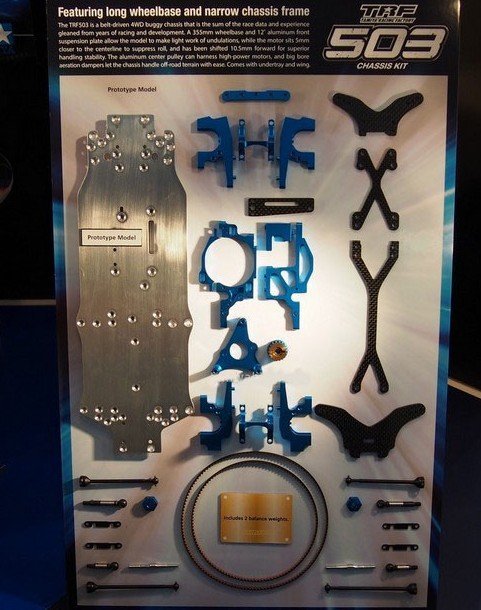

• Special function 1 : Features a long-wheelbase paid down deck. It's 7.5mm greater extended set alongside the 511 for improved management on uneven areas.
• Special function 2 : The engine spot ended up being shifted 10.5mm toward leading linked to the framework to enhance controllability, although the engine mount is 5mm nearer towards centerline, that actually assists in easing framework roll.

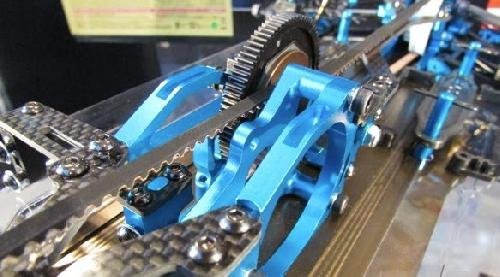

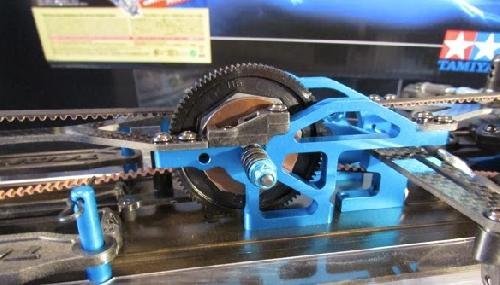

• Special function 3 : the capacity to manage higher-power machines is because of this new single-piece aluminum center pulley.
• Special function 4 : A weight reduction of as much as 20per cent is attained by utilizing lightweight aluminum top and paid off bulkheads.

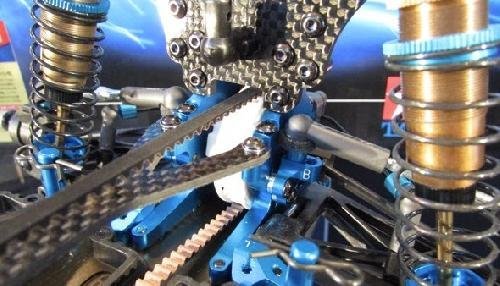

• distinctive function 5 : The aluminum suspension system system system dish is angled at 14 levels, which very nearly twin set alongside the TRF511. Damper accessory roles have been raised 2mm towards front stay, for optimized front side damper rebound.
• Original function 6 : Universal shafts are guaranteed with band connectors.

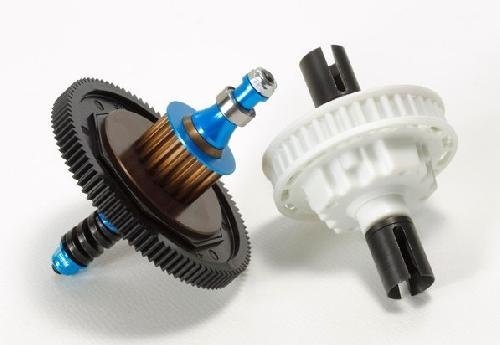

• Special function 7 : Includes 39T oil-filled gear differentials, big bore aeration dampers
• Requires A : 2-channel radio gear & electronic cost control
• Requires B : 7.2 power packs & charger
• Requires C : polycarbonate paint
• Requires D : tires
