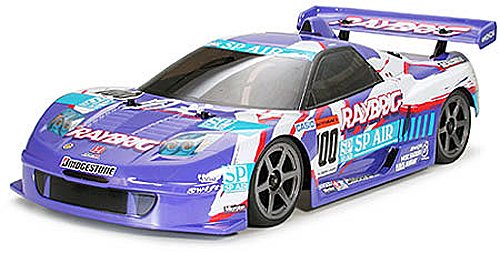

Tamiya 58297 - 1/10 RCC Raybrig NSX 2002 (TA04-R)  [58297]

The RAYBRIG NSX 2002 of Team Kunimitsu with MOONCRAFT is notorious for tearing up the track at Japan GT Championship (JGTC) scene. Through second competition in SUGO the apparatus showcased a characteristic induction industry fixed towards roof. The Raybrig of Team Kunimitsu with MOONCRAFT completed up being also comprehended due to the vivid azure and white coloring.

Towards model

The TA04-R Chassis is completely prepared for starters Purpose Just: to Race.

Double-deck framework of framework features carbon reinforced resin paid down deck and complete carbon top deck for increased durability. Chassis employs 2-belt 4WD with a total number of ball bearings additionally ball differential gears for optimum drive effectiveness. With a complete number of choice elements and suspension that would be fine-tuned, this R/C framework stays genuine to pure racing. (engine not included)

Fundamental specifications

• total size: 420mm
• basic width: 189mm
• Total height: 123mm
• Min. Clearance: 5mm
• bodyweight completely ready: 1,575g (measurement includes TP-S3003 servo, CPR unit and RC2400SP Battery)
• Wheelbase: 257mm
• Tread F/R: both 166mm
• Chassis Material: Carbon/Carbon fibre strengthened nylon
• Chassis Shape: Double Deck Frame
• Steering Tie Rod: 3 component Suspension System
• Front and back Double Wishbone
• Caster Angle-F/R: 6deg/2deg
• Camber Angle-F/R: adjustable
• Toe Angle-F/R: 0 deg. adjustable/4deg
• Damper: F/R TRF Damper
• Transmission Type: Belt Mid-ship Full-time 4WD
• Gear Ratio: 5.69:1 (kit standard)
• Diff. gear system: F/R Ball Diff
• Recommended Speed Controller: Electronic Speed Controller
• Tire Width: F/R both 24mm
• Tire Diameter: F/R both 64mm
• Tread Pattern: F/R Slicks

Necessary products and services (available separately)

• Physical stature 540 motor
• R/C Unit:Adspec GT-I or FET 2-channel R/C product with electronic cost control
• Battery: Tamiya 7.2V Racing Pack
