Tamiya 58278 - 1/10 SCALE RC 4WD RACING CAR LANCIA 037 RA (TA-03R)  [58278]

Tamiya 58278 - 1/10 SCALE RC 4WD RACING CAR LANCIA 037 RA (TA-03R)
Price:
CAD$430.61
Brand:
Tamiya
Model:
58278
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - On-Road - Touring Cars - Electric Powered category
Write a review
alt="Tamiya 58278 - 1/10 SCALE RC 4WD RACING CAR LANCIA 037 RA (TA-03R)" title="Tamiya 58278 - 1/10 SCALE RC 4WD RACING CAR LANCIA 037 RA (TA-03R)"
alt="Tamiya 58278 - 1/10 SCALE RC 4WD RACING CAR LANCIA 037 RA (TA-03R)" title="Tamiya 58278 - 1/10 SCALE RC 4WD RACING CAR LANCIA 037 RA (TA-03R)"
alt="Tamiya 58278 - 1/10 SCALE RC 4WD RACING CAR LANCIA 037 RA (TA-03R)" title="Tamiya 58278 - 1/10 SCALE RC 4WD RACING CAR LANCIA 037 RA (TA-03R)"
alt="Tamiya 58278 - 1/10 SCALE RC 4WD RACING CAR LANCIA 037 RA (TA-03R)" title="Tamiya 58278 - 1/10 SCALE RC 4WD RACING CAR LANCIA 037 RA (TA-03R)"
alt="Tamiya 58278 - 1/10 SCALE RC 4WD RACING CAR LANCIA 037 RA (TA-03R)" title="Tamiya 58278 - 1/10 SCALE RC 4WD RACING CAR LANCIA 037 RA (TA-03R)"

The Lancia 037 Rally ended up being made considering 1983 World Rally Championship, Group B legislation. Modified from Lancia Beta Monte Carlo, the glass-fiber reinforced resin human anatomy completed up being manufactured by Sergio Pininfarina and encases a 2 liter 4 cylinder super-charged engine that boasts over 300 hp. The car's dependability and top condition assisted ensure it is the title of providers' Champion.

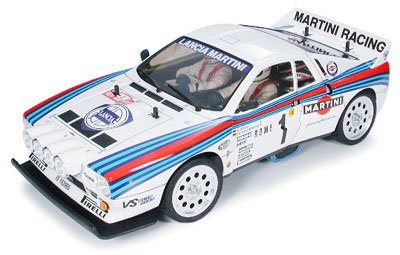

Practical, step by step Reproduction of car Body
the reproduction accurate towards tiniest components with a resin strengthened human body, the model features the Lancia's trademark 4-headlight device. The model also includes motorist and co-driver figures, and stickers found in the Monte Carlo rally.

High-Efficiency Belt Transmission 4WD
A hardened bathtub type FRP primary frame functions even though backbone the high-efficiency 4WD gear transmission. Besides tightly fastened gearboxes into the front component and straight back in regards to the automobile have actually an overall of 9 ball bearings, minimizing drive loss and benefiting from effectiveness.

Independent 4-wheel Suspension made out of Wheel Dampers
4-wheel split double wishbone suspension system for exceptional road keeping made out of high-shock taking in wheel dampers. Authentic semi-slick tires to get you psyched up for intense rally car action.

Fundamental Specifications

  • Chassis Type: TA03
  • Scale: 1/10
  • basic Length: 416mm
  • General Width: 186mm
  • Overall Height: 130mm
  • minimal Clearance: 8mm
  • Weight Completely Equipped: 1,700g (including electric batteries)
  • Wheelbase: 237mm
  • Tread (front side and straight back): 157mm
  • Chassis Material: ABS Resin Type
  • Chassis Type: Bath-tub framework
  • Steering Tie Rods: split in three portions
  • suspension system system system system (front part and back): double wishbone
  • Caster Angle (f/r): 10 deg./3 deg.
  • Camber Angle (f/r): 1.5 deg.
  • Toe Angle (f/r): 0 deg. (variable)/1.5 deg.
  • Dampers (f/r): CVA Damper super mini/CVA Damper mini II
  • Drive Train: gear driven mid-ship full-time
  • 4WD Gear Ratio: 8.51:1(OP gear usage 4.76-9.93)
  • Diff Gear System (f/r): three bevel diff
  • Speed Controller: amplifier
  • Tire Width (f/r): 27mm
  • Tire Diameter (f/r): 65mm
  • Tire Pattern (f/r): semi-slick race
  • Type 540 engine
ELECTRICAL KITS WANT: (unless stated in another way above)
  • Radio: 2-Channel with servo(s)
  • Battery: 6-cell flat with standard Tamiya connector
  • Charger: AC/DC timed or top for 6-cell battery power
  • Paint: PS for Polycarbonate/TS for ABS
  • Misc. Things: Building and track gear
