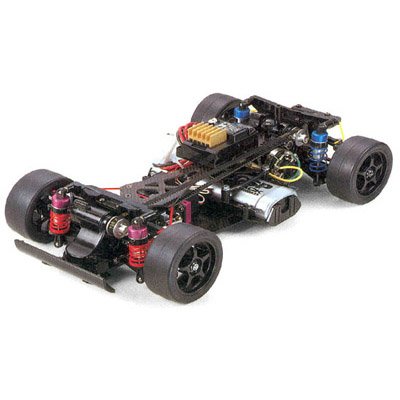

Tamiya 58243 - 1/10 TA03R-S TRF Special Chassis [58243]

Price:

CAD$413.20

Brand:

Tamiya

Model:

58243

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
R/C Models - On-Road - Touring Cars - Electric Powered category

Write a review

alt="Tamiya 58243 - 1/10 TA03R-S TRF Special Chassis" title="Tamiya 58243 - 1/10 TA03R-S TRF Special Chassis"

Description

Based on the Model a new TRF Chassis addition towards 1/10 electric touring car TA03 show, that will be a well known among R/C fans. The TA03R-S TRF Original Chassis Kit features a midship arranged engine for fast maneuvering and 28 choice elements for improved performance. Lightweight, rigid double deck framework kit includes perforated 2.5mm thick carbon dietary fiber main framework and 2mm dense carbon fiber upper deck. Effective gear driven 4wd framework with four wheel split double wishbone suspension system system, complete bearings and a lot of other race-tested choice elements. Responsive framework satisfies the strict requirements of experienced drivers. Super minimal Friction Dampers, Universal Shafts plus some especially colored aluminum elements create the unique kit image.

Fundamental Demands

General Length= 354mm
General Width= 192mm
Clearance= 9mm
Weight completely Equipped= 1400g (dimension includesTP-S3003 servo, CPR product and 1700SP Battery. Body perhaps not included.
Wheelbase= 237mm
Tread F/R= 157mm/165mm
Chassis Material= 2.5mm thick Carbon Fiber+2.0mm dense Carbon Fiber
Chassis Shape= Double Deck
Steering Tie Rod= 3 component
Suspension= Front and right back 2 times Wishbone
Caster Angle-F/R=8/3
Camber Angle-F/R=1.5/1.5
Toe Angle-F/R=Variable/1.5
Damper= F/R Super minimal Friction Dampers
Transmission Type=Belt Driven 4WD
Gear Ratio=7.34:1
Differential=F/R One Way/Ball Differential
Recommended Speed Controller: Electronic Speed Controller
Tire Width/Diameter=27/65mm
Tread Pattern=Front and right back Reinforced rushing Slicks Type the
Tire Material=Synthetic Rubber

Necessary products (Available on their own)

Body: 1/10 Touring automobile Body (50695 Taisan Starcard Porsche 911GT2 and 50747 Porsche 911GT1)
R/C unit: Adspec GT-I or 2-channel R/C product with electronic price control
motor: RS540 program
Battery: Tamiya 7.2V rushing Pack

ELECTRICAL KITS WANT: (unless reported an additional means above)

Radio: 2-Channel with servo(s)
Battery: 6-cell flat with standard Tamiya connector
Charger: AC/DC timed or top for 6-cell electric batteries
Paint: PS for Polycarbonate/TS for ABS
Misc. Products: Building and track gear
