Tamiya 58274 - 1/10 TA04-S Chassis Kit  [58274]

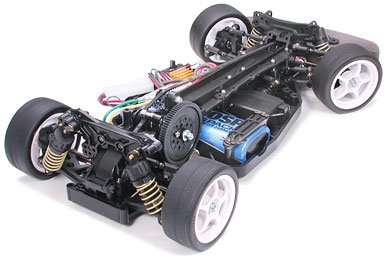

Tamiya 1/10 TA04-S Chassis Kit

Tamiya gifts the superior, tasks type of the absolute most utilized TA04 framework utilized by R/C enthusiasts of many years and examples of experience. Designed to battle, this framework includes a complete ball-bearing set to reduce drive loss and employs adjustable change buckle shafts. The high effectiveness 2 gear 4WD system, the 4-wheel double wishbone suspension system, and hardened resin twin deck framework about the TA04 had been kept unchanged. Just find the human body and motor of choice and you'll took decide to your realm of real R/C competition!

Comprehensive Ball-Bearings

The framework is sold with ball bearings not merely to the drive shaft, within the steering hands furthermore. This allows for smoother driving and increased durability. Repair is manufactured easier aswell.

made out of Turn-Buckle Shafts

the maximum and straight back top arms, steering tie rods, and steering linkage all use change buckle shafts. The dimensions of the shafts may be modified without decrease for effortless steering shaft modification.

2 Belt 4WD

The TA04-S framework employs a greater effectiveness 2 gear drive 4WD system with an 83T spur gear. *Motor perhaps not included.

demands

• fundamental Length: 365mm
• General Width: 184mm
• Clearance: 8mm
• fat completely ready: 1,517g (dimension includes TP-S3003 servo, CPR unit and RC2400SP Battery.)
• Wheelbase: 257mm
• Tread F/R: both 162mm
• Chassis Material: ABS/Polycarbonate
• Chassis Shape: Double Deck Frame
• Steering Tie Rod: 3 component
• Suspension system: Front and Rear Double Wishbone
• Caster Angle-F/R: 10deg/2deg
• Camber Angle-F/R: adjustable
• Toe Angle-F/R: adjustable/2deg
• Damper: F/R CVAMiniII
• Transmission Type: 2 Belt Mid-ship Full-time 4WD
• Gear Ratio: 7.08:1 (kit standard)
• Diff. gear system: F/R 3-Bevel Diff
• Recommended Speed Controller: Electronic Speed Controller
• Tire Width: F/R both 26mm
• Tire Diameter: F/R both 64mm
• Tread Pattern: F/R Slicks
