Tamiya 58282 - 1/10 TA04-R Chassis Kit [58282]

Price:

CAD$614.09

Brand:

Tamiya

Model:

58282

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
R/C Models - On-Road - Touring Cars - Electric Powered category

Write a review

alt="Tamiya 58282 - 1/10 TA04-R Chassis Kit" title="Tamiya 58282 - 1/10 TA04-R Chassis Kit"

Description

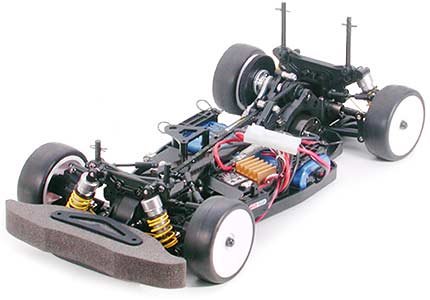

Double-deck framework of framework features carbon strengthened resin paid off deck and complete carbon top deck for increased durability. Chassis employs 2-belt 4WD with a complete group of ball bearings plus ball differential gears for maximum drive efficiency. With a total variety of option parts and suspension system system system that could be fine-tuned, this R/C framework stays genuine to pure competition. (motor, battery power and speed control not included)

Built for Speed, down to the tires Double wishbone suspension system system includes approval modification procedure and super-efficient wheel dampers. F/R top arms, steering tie rods, and torque rods feature turnbuckle shafts good at fine adjustment.
The 04 Module Spur Gear- the Icing regarding dessert 04 module spur gear employs carbon plating to put up gear in position. 45T Pinion gear comes with 128, 120, 112T spur gears. Chassis is sold with aluminum engine heat sink to facilitate effective temperature escape.

2 Belt Drive 4WD- a Recipe for Drive Efficiency
The TA04-R's 2 Belt Drive 4WD system affords minimized friction for optimum sporting efficiency.

Specs

Chassis Type: TA04-R
Scale: 1/10
basic Length: 355mm
basic Width: 186mm
Total Height: 135mm
Clearance: 8mm
weight Completely Equipped: 1,425g (Dimension includes TP-S3003 servo, CPR device and RC2400SP Battery, without human anatomy.)
Wheelbase: 257mm
Tread F/R: both 162mm
Chassis Material: Carbon/Carbon fibre strengthened nylon
Chassis Shape: Double Deck Frame
Steering Tie Rod: 3 component
suspension system system system: Front and right back Double Wishbone
Caster Angle-F/R: 6deg/2deg
Camber Angle-F/R: adjustable
Toe Angle-F/R: 0 deg. adjustable/4deg
Damper: F/R TRF Damper
Transmission Type: Belt Mid-ship Full-time 4WD
Gear Ratio: 5.69:1 (kit standard)
Diff. Gear System: F/R Ball Diff
Suggested Speed Controller: Electronic Speed Controller
Tire Width: F/R both 24mm
Tread Pattern: F/R Slicks
Tire Diameter: F/R both 64mm

Optional Components Included

Carbon Reinforced Resin Lower Deck
TRF Dampers
Aluminum back Bulkhead Beam
Aluminum Servo keep
Urethane Bumper
Universal Shaft
5mm Aluminum Ball Connector (10 pcs.)
Medium-Narrow Reinforced Tires Type A
Medium-Narrow soft Inner Foam (1 Set)
TA04 Ball Differential Device
TA04 Aluminum engine Heat Sink
On-Road Tuned specialized Spring Set
TA04 colors Stabilizer Set (front side)
TA04 Colors Stabilizer Set (rear)
4mm extortionate Lock-Nut & Spacer Set
TA04 Aluminum Hub Set For Spur Gear
TA04 Rushing Hub Carrier Set
TA04 Toe-In right back Uprights
TA04 Minimal Friction Belt (front side)
TA04 Minimal Friction Belt (back)
TA04 Carbon Upper Deck
Comprehensive Bearing Set
*F/R Upper Arm, Steering Rod, Steering Linkage, and Torque Rod all usage Turnbuckle Shaft.

ELECTRICAL KITS WANT: (unless stated in different means above)

Broadcast: 2-Channel with servo(s)
Battery: 6-cell flat with standard Tamiya connector
Charger: AC/DC timed or top for 6-cell battery pack
Paint: PS for Polycarbonate/TS for ABS
Misc. Things: Building and track gear
