The TB show framework design goes dating back to on Tamiya TGX nitro sedan framework in 1994. The TGX pioneered the guts shaft, band and pinion drive train for model automobiles. This shaft drive design was certainly quickly wear the TB-01 electric sedan framework, marking the start the TB show framework. The selling point of Sedan rushing induce a variant about the TB framework called the TB Evolution. Designed for battle, the TB Evolution have already been constructed with performance features particularly a double deck carbon dietary fiber framework, carbon shock towers, aluminum engine mount and ball differentials. Information obtained from battle was in fact added to enhance performance in the form of the TB Evolution II. The TB Evolution II had lightweight differential elements, aluminum bulkheads and adjustable suspension system system system obstructs that allow accurate suspension system system system angle modifications.

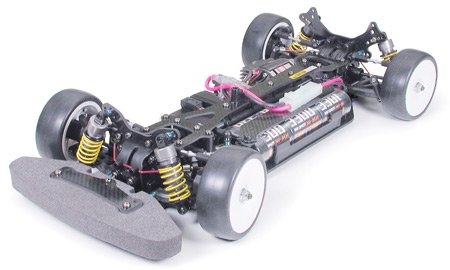

Tamiya�s TB Evolution III is the latest variation of TB series framework featuring key improvements throughout the framework. One of many improvements will be the destination associated with engine and electric batteries. The TB Evolution III is now laden with the engine towards right hand side the framework since the batteries in left. This somewhat decreases torque steer form the engine and encourages stable throttle effect.
completely new effectiveness top options that come with the TB Evolution III
Lightweight differential out drives: These out drives act such as the F201 whilst the 414M. The look maximizes smooth vibration free power transfer on tires.
brand-new Center Drive Shaft:
the center drive shaft features paid vibration during procedure further enhancing security and effectiveness.
groundbreaking Aluminum Spur Gear Adaptor:
Spur gear adaptor also decreases driveline vibration from spur gear. Spur gear dimensions are really risen to offset motor and extra decrease drive loss.
Narrow Carbon Chassis:
the low framework completed up being made 5mm narrower to assist center the battery power and gadgets resulting in quicker steering effect and paid off framework scraping during hefty cornering.
completely new Chassis Brace Location:
The framework post connecting top of the and repaid framework is clearly good framework to equalize framework rigidity.
414M Suspension:
Suspension fingers, caster obstructs and uprights derive from the 414MII. Adjustable suspension obstructs enable exact roll-center, anti-squat and anti-dive modifications.
new Front One-Way:
just like the one-way product regarding 414MII, featuring ultra smooth rotation for efficient cornering.
Immense weight-loss:
Bulkheads is expunged to produce 40g (1.4oz) fat price benefits.
The TB Evolution III improvements on framework, drive train and fat improvements are certain to match both inventory and Modified sedan battle.
requirements
- Chassis Type: TB Evolution III
- Scale: 1/10
- Total Length: 366mm
- Total Width: 189mm
- Clearance: 5mm
- fat Fully-Equipped: 1,440g (measurement includes TP-S3003 servo, CPR device and RC2400SP Battery with RS-540 motor)
- Wheelbase: 257mm
- Tread F/R: 163mm
- Chassis Material: Carbon
- Chassis Shape: Double-Deck Frame
- Steering Tie Rod: 3 component
- suspension system: Front and Rear Double Wishbone
- Caster Angle F/R: 4deg/0deg
- Camber Angle F/R: adjustable
- Toe Angle F/R: adjustable/2deg
- Skid Angle F/R: 1.6deg/0deg
- Damper: F/R TRF Super minimal Friction Dampers
- Drive Train: Shaft Driven regular 4WD
- Gear Ratio: 7.34:1, 6.88:1 (Standard in kit)
- Diff. Gear System: F/R One-Way/Ball-Diff
- Speed Controller: Electronic Speed Controller
- Tire Width: F/R both 24mm
- Tread Pattern: F/R Slicks
- Tire Diameter: F/R both 64mm
