This Universal Slider Set is a fresh item the academic Construction show! These construction slides can complement universal hands. Utilize them to convert gearbox rotation into linear movement (slider-crank procedure) or use them as guide elements for linear movement. Simple framework (slider base with attachment holes and rollers) enables compact construction.
• Slider width: 29.2mm, degree: 29.2mm, height: 20.2mm. Body weight: 5.8g. (approximate)

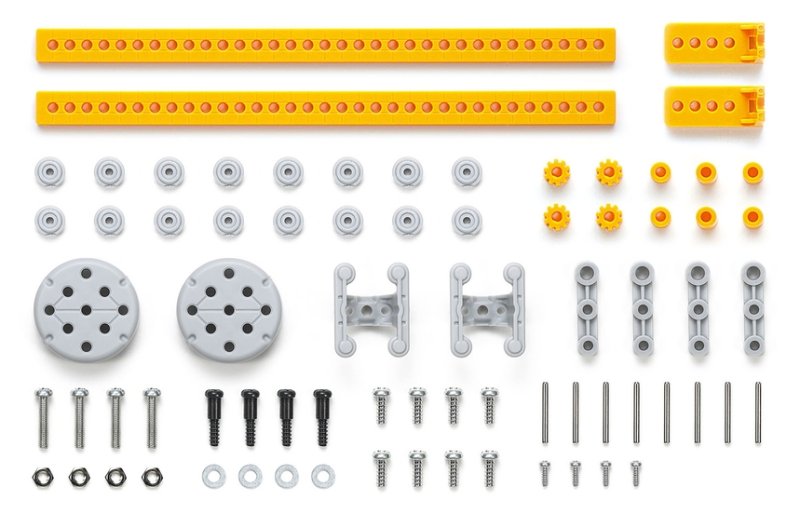

Includes these components:
1. Parts for sliders x2
2. Universal supply x1
3. 3x8mm tapping screws x8.
4. 2x6mm tapping screws x4.
5. 3x14mm action screws x4
6. 3x15mm screws x4
7. 2x17mm shafts x8
8. 3mm washers x4
9. 3mm nuts x4.
• can be used with right and curved universal fingers.
• Sliders also can complement 20mm gaps.
• Includes joint component which links slider with universal supply and works due to the fact the axis of rotation.
