Regarding the U.S. M3 Tank
The M3 light tank have been created using four VVSS bogies, two per part, a front side component mounted sprocket and a right back, trailing idler wheel. The trailing increased ground anxiety, consequently permitting a modest armor enhance. Front armor wound up being 38mm, while component armor ended up being 25mm. It absolutely was maybe not adequate, however it finished up being all framework could manage. Armament contains a bow mounted .30, two sponson mounted .30 MGs, a 37mm M5 main tool with a coaxial .30 MG, and a .30 MG on an anti-aircraft mounting during the turret component.
Unfortuitously, the M3 had been an outdated design by European terms immediately. The classes through Spanish war was in fact interpreted in another means in europe. This created automobiles like French Char B1, the German PzKpfw III and IV, combined with the Russian T34. Most of these had greater security and armament set alongside the M3.
Stuart Versions
There have been a few variants regarding M3 light tanks. First, there's been four types of turrets. Initial turret finished up being the D37182 turret. This can be a slab-sided, hexagonal turret. It used riveted construction and had an octagonal cupola with eyesight slits. It finished up unearthed that dedicated MG fire from turret caused the rivets to split and travel around inside turret. So that your identical turret design ended up being certainly taken and welded together. This became the D38976 turret. This turret comes into play the Academy M3 'Honey' kit.

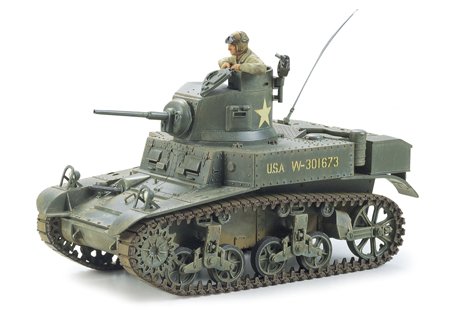

a 3rd turret sort, called D39273, finished up being introduced in November 1941, and wound up being effortlessly distinguished from earlier turrets by its curved, horseshoe type and a commander cupola. Initial design needed a rotating periscope but it is maybe not fitted. Vision slits round the cupola provided limited eyesight. This turret comes in toward Tamiya M3 kit.
The 4th turret type, D58101, resembled the D39273 though minus the cupola, and finished up being introduced in very early 1942. It had two roof hatches and a pericopic sight the commander. This turret is within the Academy 'M3A1' kit.
The M3 ended up being certainly running on the Continental W-670 radial motor. But this engine have now been around also necessary for aircraft, consequently other energy sources was at reality seemed for. In September 1940, utilization of the Guiberson T-1020 diesel motor was authorized. This engine had a somewhat different motor deck design, with all the current pipelines the environment filters running towards the motor grill, in place of entering the hull near the environment filters. Tamiya offers the Guiberson design on the tank. The diesel engined automobiles aren't popular inside military, due to dependability and logistic problems of running gas and diesel driven cars together. The Marines had less dilemmas, as diesel fuel wound up being perfect for their landing art.
