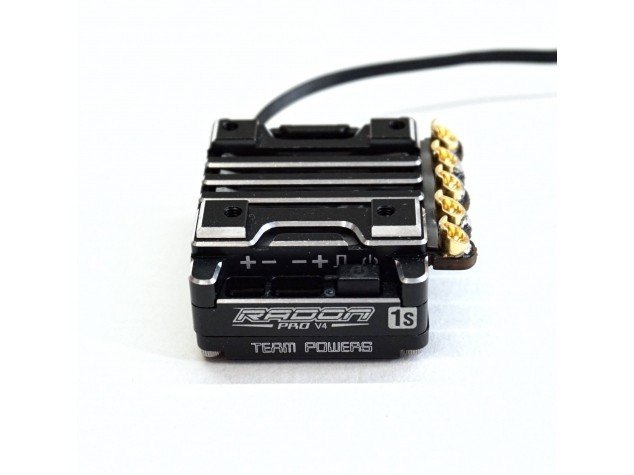

Team Powers Radon professional V4 1S (200A) Speed Control (included USB device) (TP-Radon-ProV4-1S)
Hardware:
* Upgrade as a form of greater ampere FET to minimize the equipment inside opposition with a rise of manufacturing power. Besides, its paid IR can reduce the purchase price control working heat by around 6percent
* with increased available line area to dissipate more heat away in term to reduce the cost control temperature by additional 6percent
* the purchase price control casing simply has 17mm height with 2mm lower that having better reduced gravity
* extra ~10per cent fat lighter
* help Ch3/Ch4 Aux Input indicator to change various product function values
* fresh pcb layout design with better safety and reliablility
Computer Software:
* With Ch3/Ch4 Aux function to change among the underneath pre-defined control item function
(age.g. IP-Limiter, Throttle Speed, RPM Lock, Initial Brake, Drag Brake, Brake Force, I-BK-RSP, Brake Speed,
Increase Timing, Increase Trig LVL, Increase Trig Speed, Turbo Timing, Turbo Delay, Turbo On Rate)
* Optimize the stopping system function with better linearity
Needs:
. Settings: Forward/Brake/Reverse
. Input Voltage: 1S lipo
. BEC: 6V/7.4V selection/max ~3A
. Motor Limit: 3.5T or maybe more
. Max offer: ~200A per phase
. Size: ~38x30x17mm
. Weight: ~37g (perhaps not add wiring and fan)
Features:
. Ultra-smooth, Precise Throttle and Braking Control
. Suitable for Sensored/Sensorless Brushless Motors
. Information review Capability(RPM, minimal voltage and ESC heat)
. HotWire Computer Interface for Advanced Programming and Upgrading
. Effortlessly Programming through system card(perhaps perhaps not within the package)
. Built-in one touch On/Off switch with Light-emitting Diode
. Bulit-in minimal voltage cut-off, Overheat safety and indication loss security
