XRAY 370704 X1 2019 Specs  [XR-370704]

XRAY 370704 X1 2019 Specs
Price:
CAD$570.14
Brand:
XRAY
Model:
XR-370704
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - On-Road - Formula Cars category
Write a review
alt="XRAY 370704 X1 2019 Specs" title="XRAY 370704 X1 2019 Specs"
alt="XRAY 370704 X1 2019 Specs" title="XRAY 370704 X1 2019 Specs"
alt="XRAY 370704 X1 2019 Specs" title="XRAY 370704 X1 2019 Specs"
alt="XRAY 370704 X1 2019 Specs" title="XRAY 370704 X1 2019 Specs"
alt="XRAY 370704 X1 2019 Specs" title="XRAY 370704 X1 2019 Specs"
alt="XRAY 370704 X1 2019 Specs" title="XRAY 370704 X1 2019 Specs"
alt="XRAY 370704 X1 2019 Specs" title="XRAY 370704 X1 2019 Specs"
alt="XRAY 370704 X1 2019 Specs" title="XRAY 370704 X1 2019 Specs"

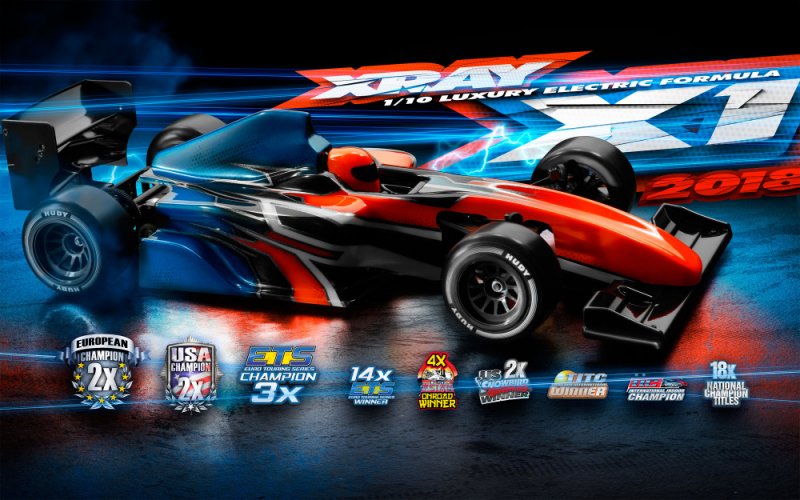

XRAY X1

1/10 DELUXE ELECTRIC FORMULA



2018 All-new:

  • All-new super-narrow framework design is 24mm narrower to eliminate framework connection with the track while rolling
  • All-new redesigned component hyperlink adaptors – machined from graphite – are set up to aluminum really seems working alongside brand new super-narrow chassis
  • All-new steering obstructs with new additional Ackermann spot for significantly more in-corner steering and nearly 100percent Ackermann curve
  • All-new surprise adaptor for fast & easy shock spot improvements; groundbreaking frontward spot for improved drivability over bumps and enhanced on-power traction
  • All-new graphite servo owner permits mounting of new surprise adaptor
  • All-new tweak-free pivot brace for faster & easier pod dinner mounting
  • All-new back url brace with longer leads for battery pack component end permits 5mm modification of battery pack position
  • All-new battery power backstop mounting permits battery power spot adjustment
  • Current best doing 1/10 formula vehicle: 2x European Champion, 3x ETS Champion, Snowbird Champion, IIC Champion, and an abundance of nationwide championship titles
  • Platform (including many elements) works together with past X1 versions
  • 2018 variation specialized in fine improvement of tiny details, making the car an overall champ from container



General:

  • XRAY 1/10 Formula battle vehicle with authentic 100per cent self-developed XRAY elements, created and manufactured elements by XRAY in Europe
  • Legendary XRAY premium design, workmanship & product quality and unmatched concentrate on the most readily useful details
  • Simple yet effective and proven design, well thought-out details, unmatched accuracy for most details
  • High-competition design with give attention to ultra-low fat, causing super-lightweight construction
  • Optimized for interior carpeting rushing and outside asphalt racing
  • Elegant in simplicity of use & effectiveness, the X1 is put to get to function as new standard in 1/10 Formula competition



Chassis:

  • CNC-machined from custom-manufactured 2.5mm high-grade graphite item with a specially-designed ingredient for carpeting battle and asphalt racing
  • Super-narrow framework front side side component permits maximum traction while maintaining enough steering and cornering speed
  • Chassis design has optimal tightness for exceptional administration, freedom for optimum traction, and perfect torsional stability
  • Superb managing on either interior or outside tracks, on carpeting or asphalt
  • Improved steering effect and optimal side-to-side fat transition
  • Rear graphite brace holds battery power constantly put up, while offering outstanding mounting base the optional part shock
  • Battery placement could possibly be quickly changed from inline to cross-chassis, to help make perfect fat security affected by track conditions; composite battery power backstops prevent battery power motion
  • Cross-chassis battery pack positioning has adjustable destination around 5mm too because of the adjustable battery power backstop inside framework
  • Laydown steering servo orientation for cheapest CG at framework center
  • Front center shock mount is founded regarding the absolute chassis center for perfect side-to-side fat transfer
  • Chassis and straight back pod function pre-drilled centerline holes for optimum fat security modification utilizing HUDY Balancing Tool #107880



Front suspension system system system system:

  • Strong, simple, completely adjustable, yet smart and ultra-efficient front part side suspension system system
  • High-grade graphite paid off & top suspension system system system system fingers and offer mount plate
  • Tiny, strong composite pivot balls for smooth, bind-free operation
  • Adjustable front side caster via eccentric bushings for front top dinner:  3°, 6°, 9°, and 12°
  • Adjustable front part camber via eccentric bushings for front top hands:  1.0°, 1.5°, 2.0°, and 2.5°
  • Front adjustable anti-roll club with optional complete choice of cables for fine tuning
  • Adjustable front component upper & repaid roll facilities via included shims
  • Adjustable front side track-width modification via included wheel axle shims



Steering:

  • Independent drifting servo mounting system: choice of split or fixed position
  • Tiny, robust 4-spring servo saver protects the servo from effect harm. Provides accurate steering and constant maneuvering, while making the vehicle simpler to drive
  • Pre-drilled framework holes to steer either a micro or mid-size steering servo
  • Centralized servo location for perfect steering faculties
  • Centrally-positioned servo saver supply with selectable Ackermann positions
  • Servo supply mounting: selection of separate floating or standard mounting
  • Adjustable bumpsteer traits via included shims
  • Steering backstops arranged on lower hands allow modification of maximum steering angle
  • Super-tiny yet robust steering obstructs with additional new Ackermann jobs to acquire additional steering, and ultra-precise inside gap for kingpin guarantees wobble-free assembly
  • Super-smooth hardened metal kingpins
  • Adjustable, lightweight aluminum turnbuckles for front toe modification



Right Back pod:

  • Compact, ultra-lightweight straight back pod design with composite straight back pod links situated nearer to chassis centerline
  • Narrow back pod design provides improved steering response and optimal side-to-side fat transition
  • CNC-machined pod bulkheads produced from premium extra-hard Swiss 7075 T6 aluminum, in addition black colored colored coated for long life and stylish look
  • Rear pod top meal produced from strong graphite dinner may be the base the primary shock, the working platform the component pipelines, and yes it links the real key framework construction coupled with right back pod
  • Rear wing graphite mount features numerous wing height mounting jobs additionally for better adaptation to various traction conditions
  • Smart pod design accommodates all products, enables super-easy engine access
  • Pod pivot brace features an ultra-small and lightweight pivot ball for smooth movement
  • Eccentric composite bushings are included for ultra-fine back journey height adjustment
  • Lateral damper part pipelines for smoother, more constant operation
  • Linear component springs for constant and smooth compression for smooth out-of component making, and reduction of traction rolling



Shock:

  • Well-proven fast shock from T4 touring car platform.
  • Interchangeable interior elements, with fixed 1-piece accuracy pistons available with 3 different-diameter holes for damping modification: 1.1, 1.2, and 1.3mm with 3 and 4 holes
  • CNC-machined Swiss 7075 T6 aluminum shock human anatomy, hard-anodized, with fine outside threading for fast & effortless surprise springtime preload adjustment
  • Super-soft silicone surprise O-ring for smooth procedure while preventing oil leakage
  • Ultra-finely finished hardened surprise shaft
  • Self-centering shims retain the surprise O-rings, for perfect positioning toward shock body
  • Finely-threaded aluminum surprise compensated limitation secures the silicone O-rings and shims inside surprise body
  • Super-soft silicone membrane layer layer, supported by a miniature foam pad, provides appropriate damping characteristics
  • Aluminum shock springtime collar allows fast & easy downstop adjustment
  • The C=2.3 linear 3S surprise springtime supplies the most readily useful security between traction, protection, and steering impact; a whole range optional springs can be had for further fine adjustment
  • Complete variety of springs including contemporary 3S springs (optional)
  • Aluminum progressive shocks system for enhanced traction & steering (optional)
  • Brand Brand New adaptor enables long surprise mounting for improved traction and better driving over bumps



Drivetrain:

  • CNC-machined ultra-precise wheel axles made out of premium HUDY Spring Steel™ can be hardened and hand-ground for precision fitment
  • Ultra-strong lightweight hollow metal axle for maximum dependability and reduced rotational weight
  • Rear differential with high-grade precision carbide balls for spur gear, hardened & precision-ground D-shaped metal shims, and premium carbide axial thrust-bearing
  • Precision-molded spur gear created from XRAY's exclusive composite product, guarantees genuine working, super-quiet procedure, and robustness become combined with effective motors
  • CNC-machined back hubs made from lightweight aircraft aluminum, specially lightened and black-coated for fashionable looks
  • Rear kept aluminum wheel hub features a center-balanced clamping mounting system, ensuring safe mounting while eliminating vibration and run-out
  • Full set high-speed, blue-sealed, metal ball-bearings used through drivetrain and steering to be sure maximum efficiency. All bearings are degreased and oiled with AeroShell® Fluid 12 for maximum smoothness and long life
  • Easy backside track-width modification via included shims





Body & Aerodynamics:

  • Robust human anatomy articles installed in the solid platform on aluminum in fact seems, featuring fully-adjustable human body holders
  • Multi-part front component spoiler is composed of composite bumper and Lexan™ downforce spoiler
  • Composite front part framework bumper is extremely rigid yet versatile to give you superior protection
  • Lightweight Lexan™ front component spoilers – level of low or high downforce spoilers for huge difference track conditions
  • High-efficiency, high-strength, adjustable-downforce back wing with adjustable mounting height position
  • High-performance, low-profile aerodynamic X1 body made out of top-notch premium Lexan™ item for maximum freedom for some monitor conditions. Back environment channels direct airflow onto rear wing. Body edges and cockpit sides are because flat feasible to direct airflow across the body for optimum security. Into the rooftop, two motion channels are included for appropriate venting. An integrated helmet guarantees the human body is suitable for occasions through which a pilot figure helmet is important.



Assembly & help:

  • Highest quality of composite elements guarantees super-precise fitment, simple installation, and smooth procedure of all parts
  • Premium 3D full-color Instruction Manual
  • Exclusive Virtual Online Set-up Sheet database with thousands of set-up sheets for battle tracks across the world
  • Premium, unmatched XRAY on the net help



Modification possibilities:

  • Front Side camber, caster, and toe
  • Front & backside track-width
  • Front, center, and straight back drive height
  • Front springs
  • Front anti-roll bar
  • Fully-adjustable right back surprise absorber
  • Downstops
  • Side damper pipelines for lateral pod damping
  • Chassis tweak
  • Ackermann
  • Bump steer
  • Differential settings
  • Battery position
  • Front wing downforce
  • Rear wing downforce
  • Steering system
  • Servo mount system



Dimensions

Class:

1/10 formula

Width:

Adjustable 180mm front component, 185mm right back (depends upon tires used)

Lenght:

410mm

Wheelbase:

264mm

Bodyweight:

375g

Ready-to-run fat:

985g (varies influenced by gear utilized)

Framework

Chassis:

2.5mm carbon fiber, CNC machined

Body:

XRAY X1 1/10 formula type


Drivetrain

Type:

2WD direct drive to rear axle

Back Axle:

Metal shaft with ball differential

Principal:

Spur/pinion

Bearings:

High-speed ball-bearings (13)


Suspension

Front:

Spring-supported, kingpin-style front side part suspension system system system system system with composite  steering obstructs and graphite upper & paid off suspension system system system hands

Straight Back:

Main-stream back pod, adjustable via pivot-ball links, handled by side pipelines

Right Back Shock:

Central adjustable oil-filled shock absorber


Geometry

Ride Height:

Adjustable front + straight back

Camber:

Adjustable front side

Front Caster:

3–12° adjustable caster

Track-width:

Adjustable front + right back

Toe:

Adjustable front part

Downstop:

Adjustable front component + right back

Anti-roll club:

1.2mm front part

Ackermann:

Adjustable with servo saver supply and steering block

Steering:

Direct linkage between steering supply and steering obstructs

Balance:

Front/rear fat stability adjustable via battery power spot


Other

Wheels:

Not included

Tires:

Maybe not included

Instructions:

Complete color guide

Packing:

Carton package with plastic bags with components

Additionally included:

Lexan Formula body & front component wing, HUDY Diff Grease, Authentication Certificate, elements list & exploded view, surprise oil

Not included:

Radio system (transmitter and receiver), steering servo, motor, pinion gear, power packs, price controller, charger, tires, tires, inserts, high-strength fibre tape, double-sided tape, CA glue, bearing oil, tools





Remark :
Due to limited stock availability, please notice that some XRAY items may have to order from the factory and the ready time is around 4-6 weeks. Customer purchases the item is assumed to accept the waiting time which allows us to order directly from the manufacturer if the item is out of our warehouse.
