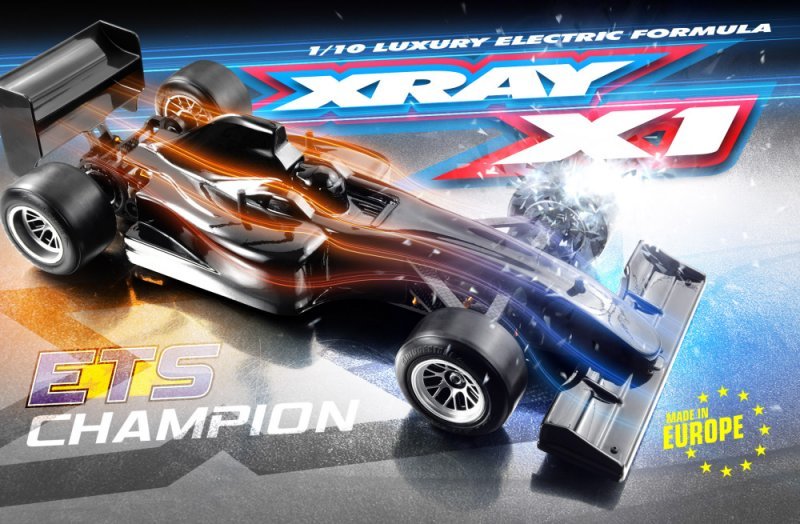

XRAY 370700 X1  [XR-370700]

XRAY X1

1/10 DELUXE ELECTRICAL FORMULA

2018 All-new:

• All-new super-narrow framework design is 24mm narrower to get rid of framework connection with the track while rolling
• All-new redesigned side url adaptors – machined from graphite – are set up to aluminum really stands to do business with unique super-narrow chassis
• All-new steering obstructs with brand-new additional Ackermann spot for a lot more in-corner steering and very almost 100percent Ackermann curve
• All-new surprise adaptor for fast & effortless shock location modifications; brand-new frontward position for improved drivability over bumps and enhanced on-power traction
• All-new graphite servo holder permits mounting about the latest surprise adaptor
• All-new tweak-free pivot brace for quicker & easier pod dinner mounting
• All-new backlink brace with longer leads for battery power part end permits 5mm modification of battery power position
• All-new battery power backstop mounting allows electric batteries location adjustment
• Current most useful doing 1/10 formula automobile: 2x European Champion, 3x ETS Champion, Snowbird Champion, IIC Champion, and many nationwide championship titles
• Platform (including numerous components) works together past X1 versions
• 2018 variation centered on fine enhancement of tiny details, making the car a complete champion from the comfort of the package

General:

• XRAY 1/10 Formula battle car with authentic 100per cent self-developed XRAY elements, designed and manufactured elements by XRAY in Europe
• Legendary XRAY premium design, workmanship & item quality and unmatched knowing for the top details
• Simple yet effective and proven design, well thought-out details, unmatched precision in virtually every details
• High-competition design with target ultra-low fat, leading to super-lightweight construction
• Optimized for interior carpeting battle and outside asphalt racing
• Elegant in simplicity & effectiveness, the X1 is willing to finish off being the newest standard in 1/10 Formula competition

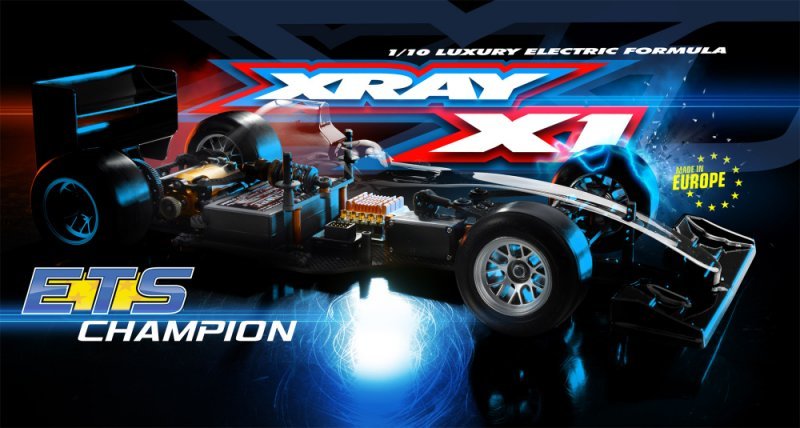

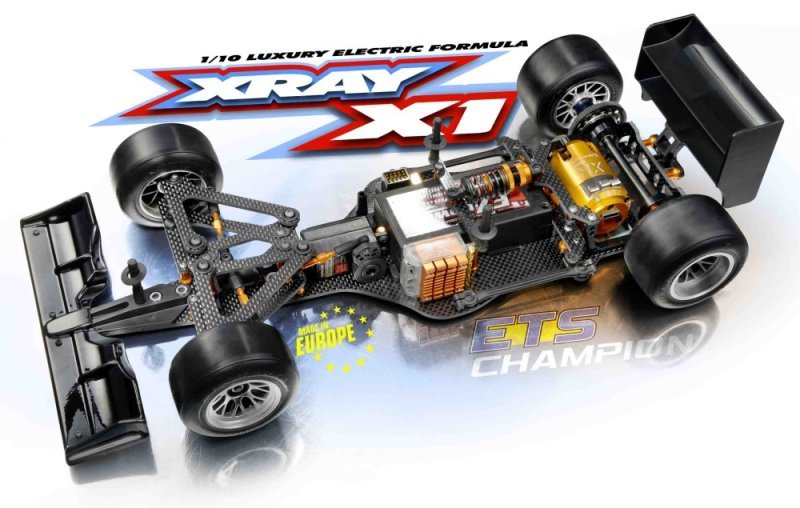

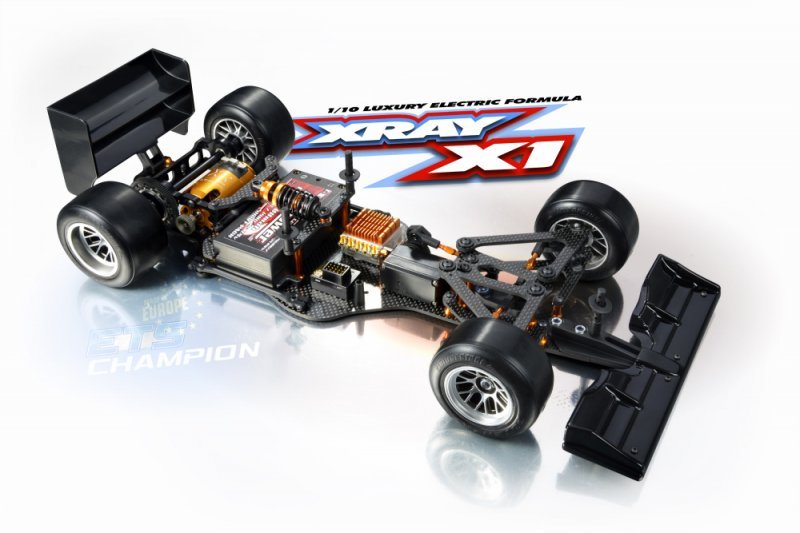

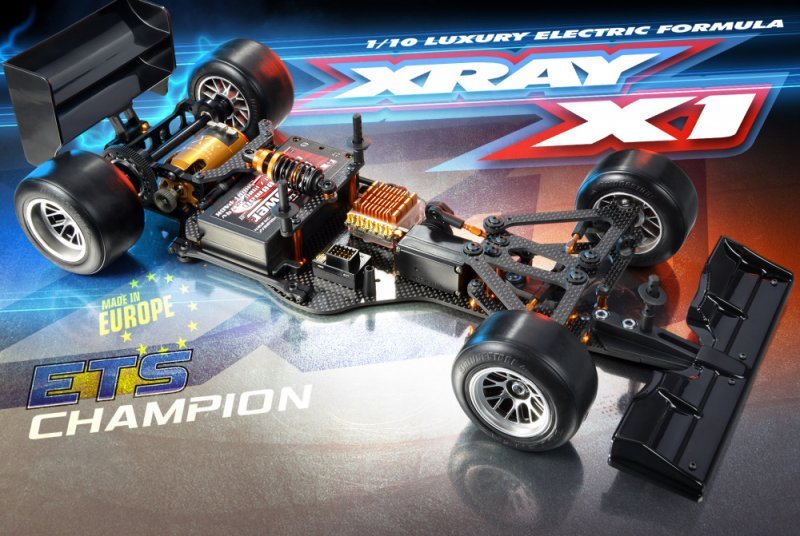

Chassis:

• CNC-machined from custom-manufactured 2.5mm high-grade graphite item with a specially-designed element for carpeting battle and asphalt racing
• Super-narrow framework front side side part enables maximum traction while maintaining adequate steering and cornering speed
• Chassis design has optimal tightness for exceptional control, freedom for optimum traction, and ideal torsional stability
• Superb handling on either indoor or outside songs, on carpeting or asphalt

• Improved steering effect and optimal side-to-side fat transition
• Rear graphite brace holds battery setup, as well as is offering a great mounting base the optional component shock
• Battery placement is quickly changed from inline to cross-chassis, generate perfect fat security decided by track conditions; composite battery power backstops minimize battery power motion
• Cross-chassis battery power placement has adjustable spot around 5mm aswell as a result of the adjustable battery backstop in chassis
• Laydown steering servo orientation for cheapest CG at framework center
• Front center surprise mount lies in the absolute framework center for perfect side-to-side fat transfer
• Chassis and right back pod feature pre-drilled centerline holes for optimum fat security modification utilizing HUDY Balancing Tool #107880

Front suspension system:

• Strong, effortless, completely adjustable, yet smart and ultra-efficient front side component suspension system
• High-grade graphite reduced & top suspension system system hands and offer mount plate
• Tiny, strong composite pivot balls for smooth, bind-free operation
• Adjustable front component caster via eccentric bushings for front top supper: 3°, 6°, 9°, and 12°
• Adjustable front part camber via eccentric bushings for front top hands: 1.0°, 1.5°, 2.0°, and 2.5°
• Front adjustable anti-roll club with optional complete collection of cables for fine tuning
• Adjustable front side top & paid roll facilities via included shims
• Adjustable front track-width modification via included wheel axle shims

Steering:

• Independent drifting servo mounting system: collection of split or fixed position
• Tiny, robust 4-spring servo saver protects the servo from effect harm. Provides accurate steering and constant control, while making the auto safer to drive
• Pre-drilled framework holes to allow for either a micro or mid-size steering servo
• Centralized servo location for perfect steering faculties
• Centrally-positioned servo saver supply with selectable Ackermann positions
• Servo supply mounting: assortment of split floating or standard mounting
• Adjustable bumpsteer characteristics via included shims
• Steering backstops create on paid off hands enable modification of optimum steering angle
• Super-tiny yet robust steering obstructs with additional amazing Ackermann jobs to obtain extra steering, and ultra-precise interior space for kingpin guarantees wobble-free assembly
• Super-smooth hardened metal kingpins
• Adjustable, lightweight aluminum turnbuckles for front toe modification

Right back pod:

• Compact, ultra-lightweight straight back pod design with composite straight back pod links situated nearer to chassis centerline
• Narrow back pod design provides improved steering effect and optimal side-to-side fat transition
• CNC-machined pod bulkheads crafted from premium extra-hard Swiss 7075 T6 aluminum, furthermore black colored colored coated for very long life and stylish look
• Rear pod top dish made from strong graphite dinner may be the base the true key shock, the working platform the component pipelines, and yes it links leading framework installation as a result of trunk pod
• Rear wing graphite mount features many wing height mounting functions also for better adaptation to different traction conditions
• Smart pod design accommodates all machines, allows super-easy engine access
• Pod pivot brace features an ultra-small and lightweight pivot ball for smooth movement
• Eccentric composite bushings are included for ultra-fine straight back journey height adjustment
• Lateral damper component pipes for smoother, more constant operation
• Linear component springs for constant and smooth compression for smooth out-of component making, and reduced amount of traction rolling

Shock:

• Well-proven fast shock from T4 touring vehicle platform.
• Interchangeable interior elements, with fixed 1-piece precision pistons available with 3 different-diameter holes for damping modification: 1.1, 1.2, and 1.3mm with 3 and 4 holes
• CNC-machined Swiss 7075 T6 aluminum surprise body, hard-anodized, with fine outside threading for fast & effortless shock springtime preload adjustment
• Super-soft silicone shock O-ring for smooth procedure while preventing oil leakage
• Ultra-finely finished hardened surprise shaft
• Self-centering shims wthhold the surprise O-rings, for perfect placement in the surprise body
• Finely-threaded aluminum surprise repaid limitation secures the silicone O-rings and shims in shock body
• Super-soft silicone membrane layer layer, supported by a miniature foam pad, provides appropriate damping characteristics
• Aluminum surprise springtime collar allows fast & effortless downstop adjustment
• The C=2.3 linear 3S surprise springtime offers the best balance between traction, protection, and steering effect; a whole amount of optional springs are had for further fine adjustment
• Complete choice of springs including modern 3S springs (optional)
• Aluminum modern shocks system for enhanced traction & steering (optional)
• brand name brand brand new adaptor enables long shock mounting for improved traction and better driving over bumps

Drivetrain:

• CNC-machined ultra-precise wheel axles created from premium HUDY Spring Steel™ are hardened and hand-ground for precision fitment
• Ultra-strong lightweight hollow metal axle for optimum reliability and paid rotational weight
• Rear differential with high-grade accuracy carbide balls for spur gear, hardened & precision-ground D-shaped metal shims, and premium carbide axial thrust-bearing
• Precision-molded spur gear built from XRAY's exclusive composite product, guarantees genuine operating, super-quiet procedure, and robustness become combined with effective motors
• CNC-machined straight back hubs crafted from lightweight aircraft aluminum, particularly lightened and black-coated for stylish looks
• Rear kept aluminum wheel hub features a center-balanced clamping mounting system, ensuring safe mounting while eliminating vibration and run-out
• Full set high-speed, blue-sealed, steel ball-bearings utilized through drivetrain and steering to be sure optimum effectiveness. All bearings are degreased and oiled with AeroShell® Fluid 12 for optimum smoothness and long life
• Easy back track-width modification via included shims

Body & Aerodynamics:

• Robust human anatomy articles put up towards solid platform on aluminum in reality appears, featuring fully-adjustable human anatomy holders
• Multi-part front side spoiler includes composite bumper and Lexan™ downforce spoiler
• Composite front side framework bumper is quite rigid yet versatile generate superior protection
• Lightweight Lexan™ front part spoilers – number of low or high downforce spoilers for distinction track conditions
• High-efficiency, high-strength, adjustable-downforce right back wing with adjustable mounting height position

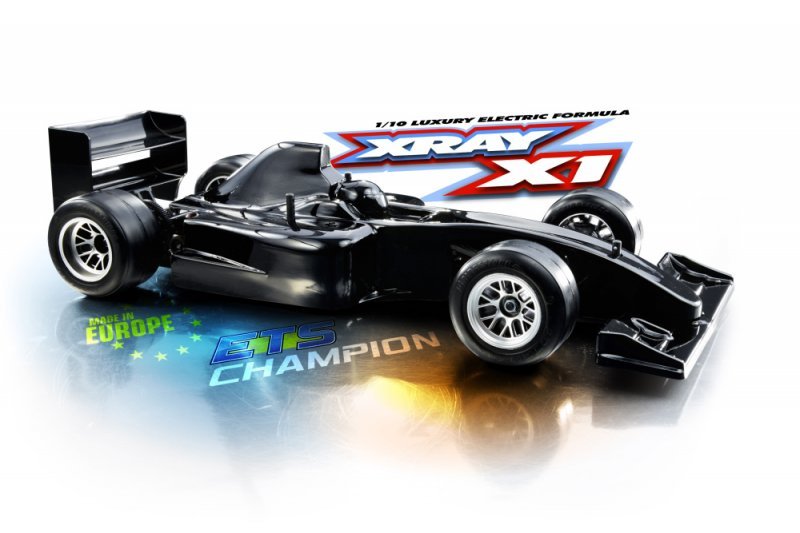

• High-performance, low-profile aerodynamic X1 human anatomy crafted from top-quality premium Lexan™ item for optimum freedom in several track conditions. Back atmosphere sites direct airflow onto straight back wing. Body sides besides cockpit sides are since flat that you can to direct airflow through the entire human anatomy for maximum safety. On rooftop, two flow sites are included for appropriate venting. A helmet guarantees one's body is suitable for tasks by which a pilot figure helmet is important.

Installation & help:

• Highest quality of all the composite elements guarantees super-precise fitment, effortless installation, and smooth procedure of all of the parts
• Premium 3D full-color Instruction Manual
• Exclusive Virtual on the web Set-up Sheet database with plenty of set-up sheets for battle songs through the world
• Premium, unmatched XRAY on line assistance

Modification possibilities:

• Front camber, caster, and toe
• Front & straight back track-width
• Front, center, and back journey height
• Front springs
• Front anti-roll bar
• Fully-adjustable right back shock absorber
• Downstops
• Side damper pipelines for lateral pod damping
• Chassis tweak
• Ackermann
• Bump steer
• Differential settings
• Battery position
• Front wing downforce
• Rear wing downforce
• Steering system
• Servo mount system
