XRAY 360005 XB4 2018 Specs [XR-360005]

Price:

CAD$796.17

Brand:

XRAY

Model:

XR-360005

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
R/C Models - Off-Road - Buggy - Electric Powered category

Write a review

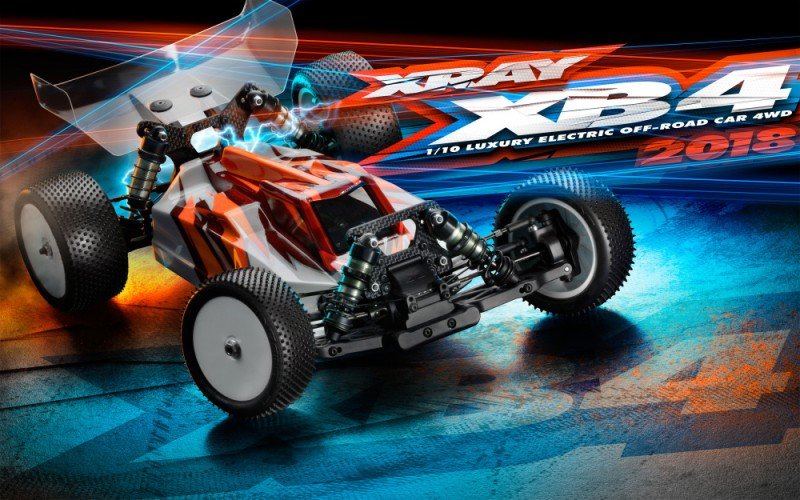

alt="XRAY 360005 XB4 2018 Specs" title="XRAY 360005 XB4 2018 Specs"

Description

Dimensions

Class: 1/10 electric 4WD off road car
Width: Adjustable 245-250mm
Length: 350 mm
Wheelbase: Adjustable 279-281 mm
Weight: 850 g
Ready-to-run fat: 1650 g

Chassis

Chassis: CNC-machined Swiss 7075 T6 aluminum 2.0 mm
Front top deck: Machined 2.0 mm laminated carbon graphite

Suspension

Suspension: Adjustable suspension system system via included Suspension System I.S.S.
Rear suspension system system system: Lower supply with adjustable top camber link
Front suspension system system system system: Lower supply with adjustable top camber website link with 9° caster blocks
Rear upright: Composite 0° toe-in with dual supply mounting and 3 roll center jobs
Shocks: Big bore membrane layer layer layer layer free surprise absorbers with Delrin pistons
Shock towers: Machined 3.5 & 3.0 mm laminated carbon graphite (front component & straight back) with numerous surprise mounting and camber hyperlink roll center jobs

Drivetrain

Type: Full-time shaft-drive 4WD
Primary: Pinion / spur
Drive shafts: HUDY Spring metal CVD drive shafts
Central shafts: HUDY Spring metal Direct Connection Shafts
Differentials: Sealed gear differential, 6 gear, silicone-filled
Slipper clutch: Adjustable 3-Pad
Bearings: Rubber-sealed high-speed bearings

Gearing

Primary ratio: 1:2.5
Differential pinion: 14T front / rear
Differential top gear: 35T front / rear14
Spur gear: 81T
engine pinion: maybe not included

Geometry

Camber: Adjustable front + back
Front Caster: 9° fixed +7~11° caster in framework = 16°~20° total caster range Optional 6° fixed +7~11° caster in framework = 13°~17° total caster range Optional12°static +7~11° caster in framework = 19°~23° total caster range
Toe-in: Adjustable front part + back
Downstops: Adjustable front component + right back
Front kick-up: Adjustable 7° ~ 11°
back anti-squat: Adjustable 1° ~ 5°
Anti-roll bars: 1.3mm front component / 1.2mm rear
Ackermann: Adjustable
Bump steer: Adjustable
Steering: Centrally-positioned double steering system

Body, Tires, Wheels & Misc

Body: XRAY XB4 body wide V2
Tires: perhaps not included
Wheels: XRAY Aerodisk 12mm Wheel hex hub

Adjustment Possibilities

Standard modification: Camber, toe-in, caster, track width, wheelbase, kick-up, anti-squat, roll center, Ackermann, bump steer
guidelines: Full-color manual with 3D images (40 pages)
Set-up guide: perhaps not included. HUDY 2-color off road set-up guide (40 pages) is established in Download area and yes it shows 1/8 down road models in photographs included within it. Although the methodology and set-up concept will be the identical for many modern 1/10 off road vehicles.
Packaging: Carton package with artificial bags with parts
Additionally included HUDY Graphite Grease, Silicone sebum, Authentication Certificate, Parts list & Exploded view, Decals

Things perhaps not Included

Radio system (transmitter and receiver), steering servo, engine, pinion gear, LiPo battery power packages, speed controller, charger, tires, inserts, double-sided tape, CA glue, bearing oil, medium-grade (blue) threadlock, universal device for many peanuts and turnbuckles and various tools

Remark :

Due to limited stock availability, please notice that some XRAY items may have to order from the factory and the ready time is around 4-6 weeks. Customer purchases the item is assumed to accept the waiting time which allows us to order directly from the manufacturer if the item is out of our warehouse.
