XRAY 301348 X4F Horizontal Body Post Alignment Gauge  [XR-301348]

XRAY 301348 - X4F Horizontal Body Post Mounting Gauge
Price:
CAD$42.42
Brand:
XRAY
Model:
XR-301348
Condition:
Brand New
Write a review

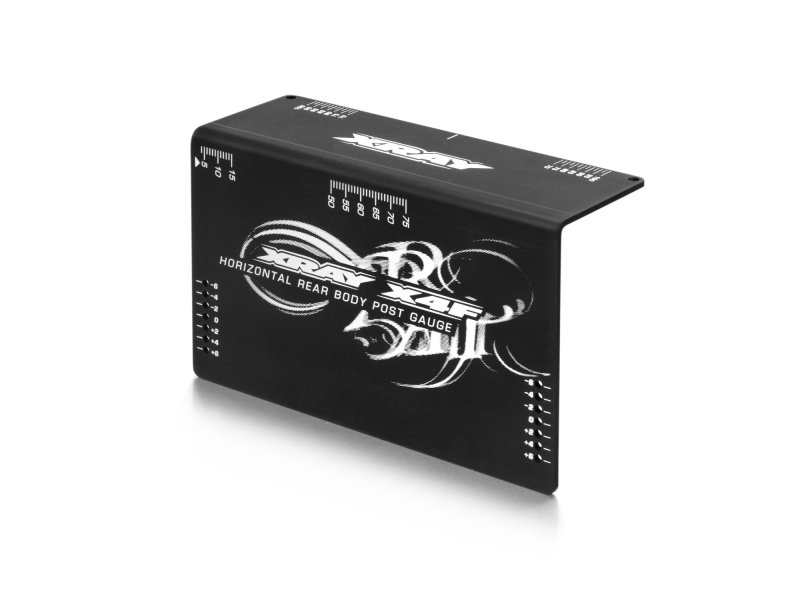

alt="XRAY 301348 - X4F Horizontal Body Post Mounting Gauge" title="XRAY 301348 - X4F Horizontal Body Post Mounting Gauge"

Fine Tune Your X4F Rear Body Alignment

The XRAY 301348 Horizontal Body Post Alignment Tool is a compact specialist tool for hobbyists using the X4F chassis. It simplifies marking and adjusting the horizontal rear body mounts so the body shell sits true and fits neatly for race day or practice.

Precise Dual-Scale Markers

Two dedicated scales give you control over key body measurements. One scale guides the rear section alignment while the other helps keep body height uniform around the car, helping preserve handling balance and visual symmetry.

Works with Common Shell Shapes

Built to suit a wide range of popular body shells, the XRAY 301348 tool is handy whether you are trimming a new shell or checking a race setup. It is a practical addition to any toolkit for consistent body placement.
Remark :
Due to limited stock availability, please notice that some XRAY items may have to order from the factory and the ready time is around 4-6 weeks. Customer purchases the item is assumed to accept the waiting time which allows us to order directly from the manufacturer if the item is out of our warehouse.

Can I use this on non X4F cars?

The tool is designed for the X4F chassis layout but can assist with marking and checking horizontal mounts on many popular shells when the mount orientation is similar.

What is the best way to use the dual scales?

Start by aligning the rear scale to the body mount points, mark the shell, then use the height scale to confirm even clearance around the car before drilling or trimming.

Any tips for repeatable measurements?

Place the body on a flat bench, secure it lightly with tape, take marks with the tool in the same position each time, and record any offsets to reproduce setups quickly.
