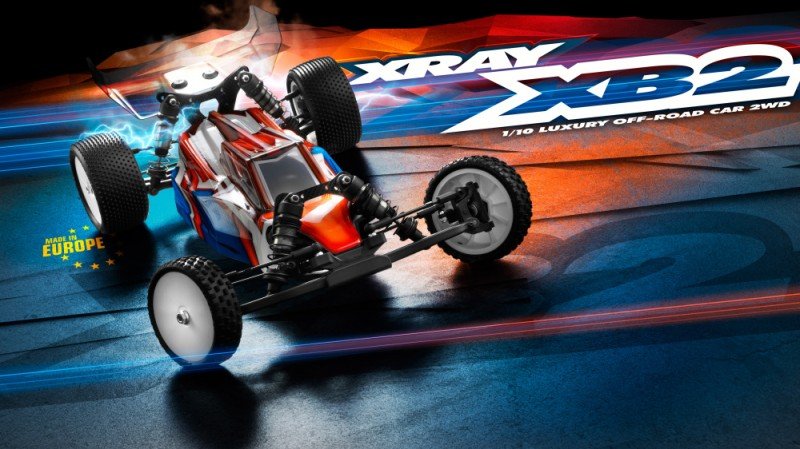

XRAY 320000 XB2 - 2WD 1/10 Electric Off-road Car - Carpet Edition  [XR-320000]

Dimensions

• Class: 1/10 electric 2WD down road car
• Width: Adjustable 245-250mm
• Length: 274mm (394mm with wing)
• Wheelbase: Adjustable 282-285mm
• Weight:
• Ready-to-run fat: 1520g

Chassis

• Chassis: CNC-machined Swiss 7075 T6 aluminum 2.0mm
• Front top deck: Composite (moderate & tough)

Suspension

• Suspension: Adjustable suspension system system system via integral Suspension System I.S.S.
• Rear suspension system system: Lower supply with adjustable top camber link
• Front suspension system system: Lower supply with adjustable top camber link and adjustable caster 0°, 2.5° and 5°
• Rear upright: Composite 0° toe-in with double supply mounting and 7 roll center jobs
• Shocks: Membrane free surprise absorbers with Delrin pistons
• Shock towers: Front & right back machined 4.0mm & 3.5 mm laminated carbon graphite (carpeting Edition) or composite (dirt Edition) with numerous surprise mounting

Drivetrain

• Type: 2WD
• Primary: Pinion / spur
• Drive shafts: HUDY Spring metal™ CVD drive shafts
• Differential: Sealed gear differential, 6 gear, silicone-filled
• Slipper clutch: Adjustable 3-Pad
• Bearings: Rubber-sealed high-speed bearings

Gearing

• Primary ratio: 1:2.65
• Gear Box gear: 25T
• Differential pulley: 53T
• Spur gear: 81T (75T, 78T & 84T choice)
• engine pinion: maybe not included

Geometry

• Camber: Adjustable front + rear
• Front Caster: 26° fixed + caster in caster block = 26°, 28.5°, 31° total caster range
• Toe-in: Adjustable front side + rear
• Downstops: Adjustable front part + rear
• Front kick-up: Adjustable 26°~31°
• Rear anti-squat: Adjustable 0°~4°
• Anti-roll bars: 1.0mm, 1.1mm, 1.2mm straight back (choice only)
• Ackermann: Adjustable
• Bump steer: Adjustable
• Steering: Centrally-positioned double steering system

Body, Tires, Wheels & Misc

• Body: XRAY XB2 body
• Tires: maybe not included
• Wheels: XRAY Aerodisk 12mm Wheel hex hub

Adjustment Possibilities

• Standard modification: Camber, toe-in, caster, track width, wheelbase, kick-up, anti-squat, roll center, Ackermann, bump steer
• guidelines: Full-color manual with 3D pictures (40 pages)
• Set-up guide: maybe not included. HUDY 2-color off road set-up guide (40 pages) are set up toward „Download component“ and it also shows 1/8 reduced road models in photographs included within it. However the methodology and set-up concept will be the same for many modern 1/10 down road automobiles.
• Packaging: Carton package with synthetic bags with parts
• Additionally included: HUDY Graphite Grease, Silicone sebum, Authentication Certificate, Parts list & Exploded view, Decals

Things perhaps not included

•   Radio system (transmitter and receiver), steering servo, motor, pinion gear, LiPo battery packages, speed controller, charger, tires, inserts, double-sided tape, CA glue, bearing oil, medium-grade (blue) threadlock, universal unit for a number of peanuts and turnbuckles alongside tools
