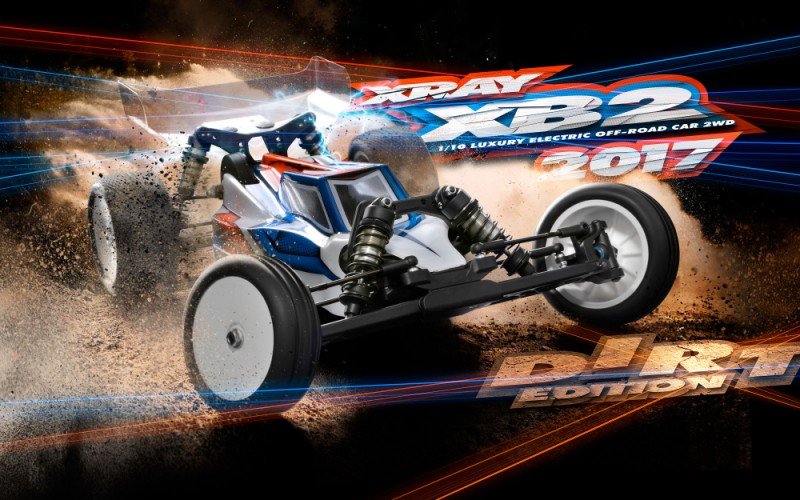

XRAY 320003 XB2 2017 Specs - 2WD 1/10 Electric Off-road Car - Dirt Edition  [XR-320003]

Dimensions

• Class: 1/10 electric 2WD down road car
• Width: Adjustable 245-250 mm
• Lenght: 274 mm (394 mm with wing)
• Wheelbase: Adjustable 282-285 mm
• Weight:
• Ready-to-run fat: 1520 g

Chassis

• Chassis: CNC-machined Swiss 7075 T6 aluminum 2.0 mm
• Front top deck: Composite

Suspension

• Suspension: Adjustable suspension system via integral Suspension System I.S.S.
• Rear suspension system system system: Lower supply with adjustable top camber link
• Front suspension system system system system: Lower supply with adjustable upper camber url adequate foundation for adjustable caster 0°, 2.5° and 5°
• Rear upright: Composite 0° toe-in with dual supply mounting and 7 roll center functions
• Shocks: Membrane free surprise absorbers with Delrin pistons
• Shock towers: Front & rear machined 4.0mm & 3.5 mm laminated carbon graphite (carpeting Edition) or composite (dust Edition) with numerous shock mounting

Drivetrain

• Type: 2WD
• Primary: Pinion / spur
• Drive shafts: HUDY Spring metal™ CVD drive shafts
• Differential: Sealed gear differential, 6 gear, silicone-filled
• Slipper clutch: Adjustable 3-Pad
• Bearings: Rubber-sealed high-speed bearings

Gearing

• Primary ratio: 1:2.65
• Gear Box gear: 25T
• Differential pulley: 53T
• Spur gear: 81T (75T, 78T & 84T choice)
• engine pinion: not included

Geometry

• Camber: Adjustable front + rear
• Front Caster: 26° fixed + caster in caster block = 26°, 28.5°, 31° total caster range
• Toe-in: Adjustable front + rear
• Downstops: Adjustable front + back
• Front kick-up: Adjustable 26°~31°
• Rear anti-squat: Adjustable 0°~4°
• Anti-roll bars: 1.0mm, 1.1mm, 1.2mm right back (choice only)
• Ackermann: Adjustable
• Bump steer: Adjustable
• Steering: Centrally-positioned double steering system

Body, Tires, Wheels & Misc

• Body: XRAY XB2 body
• Tires: perhaps not included
• Wheels: XRAY Aerodisk 12mm Wheel hex hub

Adjustment Possibilities

• Standard modification: Camber, toe-in, caster, track width, wheelbase, kick-up, anti-squat, roll center, Ackermann, bump steer
• guidelines: Full-color manual with 3D pictures (40 pages)
• Set-up guide: not included. HUDY 2-color off road set-up guide (40 pages) are arranged in obtain area and yes it shows 1/8 straight down road models in photographs included within it. Although methodology and set-up concept are the exact same for most contemporary 1/10 down road automobiles.
• Packaging: Carton package with artificial bags with parts
• Additionally included: HUDY Graphite Grease, Silicone sebum, Authentication Certificate, Parts list & Exploded view, Decals
• Items perhaps not included
•   Radio system (transmitter and receiver), steering servo, engine, pinion gear, LiPo battery pack packages, speed controller, charger, tires, inserts, double-sided tape, CA glue, bearing oil, medium-grade (blue) threadlock, universal product for most peanuts and turnbuckles and other tools
