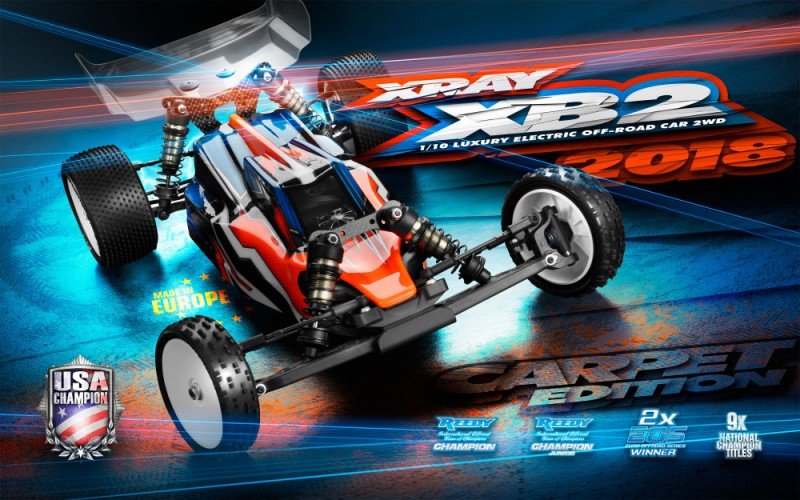

XRAY 320004 XB2 2018 - Carpet Edition  [XR-320004]

Dimensions

• Class: 1/10 electric 2WD down road car
• Width: Adjustable 245-250 mm
• Length: 274mm (394 mm with wing)
• Wheelbase: Adjustable 282-285 mm
• Weight: 835 g
• Ready-to-run fat: 1520 g

Chassis

• Chassis: CNC-machined Swiss 7075 T6 aluminum 2.5 mm
• Front top deck: extreme composite

Suspension

• Suspension: Adjustable suspension system via incorporated Suspension System I.S.S.
• Rear suspension system system: Lower supply with adjustable top camber link
• Front suspension system: Lower supply with adjustable upper camber link along side adjustable caster 0°, 2.5° and 5°
• Rear upright: Composite 0° toe-in with double supply mounting and 7 roll center jobs
• Shocks: Membrane free surprise absorbers with Delrin pistons
• Shock towers: Front & back machined 4.0mm & 3.5 mm laminated carbon graphite with numerous surprise mounting

Drivetrain

• Type: 2WD
• Primary: Pinion / spur
• Drive shafts: HUDY Spring metal™ CVD drive shafts
• Differential: Sealed gear differential, 6 gear, silicone-filled
• Slipper clutch: Adjustable 3-Pad
• Bearings: Rubber-sealed high-speed bearings

Gearing

• Primary ratio: 1:2.65
• Gear Box gear: 36T
• Differential pulley: 53T
• Spur gear: 84T (75T, 78T, 81T & 87T choice)
• engine pinion: perhaps not included

Geometry

• Camber: Adjustable front + rear
• Front Caster: 26° fixed + caster in caster block = 26°, 28.5°, 31° total caster range
• Toe-in: Adjustable front + rear
• Downstops: Adjustable front + right back
• Front kick-up: Adjustable 26°~31°
• Rear anti-squat: Adjustable 0°~4°
• Anti-roll bars: 1.0 mm, 1.1 mm, 1.2 mm straight back (option only)
• Ackermann: Adjustable
• Bump steer: Adjustable
• Steering: Centrally-positioned dual steering system

Body, Tires, Wheels & Misc

• Body: XRAY XB2 body
• Tires: not included
• Wheels: XRAY Aerodisk 12mm Wheel hex hub

Adjustment Possibilities

• Standard modification: Camber, toe-in, caster, track width, wheelbase, kick-up, anti-squat, roll center, Ackermann, bump steer
• guidelines: Full-color manual with 3D images
• Set-up guide: perhaps not included. HUDY 2-color off road set-up guide (40 pages) is set up within the „Download component“ and in addition it shows 1/8 lower road models in photographs included within it. However the methodology and set-up concept could be the same for some contemporary 1/10 off road automobiles.
• Packaging: Carton industry with artificial bags with parts
• Additionally included: HUDY Graphite Grease, Silicone oils, Authentication Certificate, Parts list & Exploded view, Decals

Goods perhaps not included

•   Radio system (transmitter and receiver), steering servo, engine, pinion gear, LiPo battery pack packages, speed controller, charger, tires, inserts, double-sided tape, CA glue, bearing oil, medium-grade (blue) threadlock, universal device for a number of peanuts and turnbuckles alongside tools
