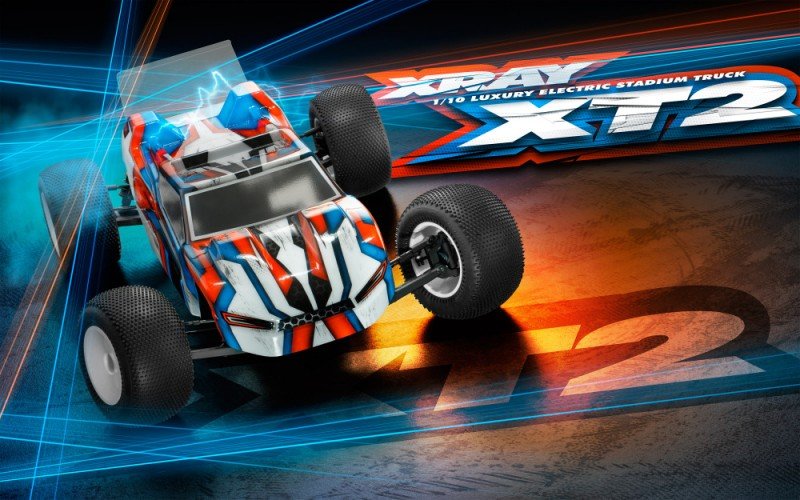

XRAY 320200 XT2 - 2018 Specs - 2WD 1/10 Electric Stadium Truck  [XR-320200]

Dimensions

• Class: 1/10 electric 2WD down road arena truck
• Width: Adjustable 313-319 mm
• Lenght: 319 mm (420 mm with wing)
• Wheelbase: Adjustable 289-294 mm
• Weight: 920 g
• Ready-to-run fat: 1900 g

Chassis

• Chassis: CNC-machined Swiss 7075 T6 aluminum 2.0 mm
• Front top deck: tough composite

Suspension

• Suspension: Adjustable suspension system system system via included Suspension System I.S.S.
• Rear suspension system system system: Lower supply with adjustable top camber link
• Front suspension: Lower supply with adjustable top camber url alongside adjustable caster 0°, 2.5° and 5°
• Rear upright: Composite 0° toe-in with twin supply mounting and 7 roll center jobs
• Shocks: Membrane free surprise absorbers with Delrin pistons
• Shock towers: Composite front side and back shock towers contain many shock functions

Drivetrain

• Type: 2WD
• Primary: Pinion / spur
• Drive shafts: HUDY Spring metal™ CVD drive shafts
• Differential: Sealed gear differential, 6 gear, silicone-filled
• Slipper clutch: Adjustable 3-Pad
• Bearings: Rubber-sealed high-speed bearings

Gearing

• Primary ratio: 1:2.65
• Gear Box gear: 36T
• Differential pulley: 53T
• Spur gear: 84T (75T, 78T, 81T & 87T choice)
• engine pinion: maybe not included

Geometry

• Camber: Adjustable front + rear
• Front Caster: 26° fixed + caster in caster block = 26°, 28.5°, 31° total caster range
• Toe-in: Adjustable front + rear
• Downstops: Adjustable front side + straight back
• Front kick-up: Adjustable 26°~31°
• Rear anti-squat: Adjustable 0°~4°
• Anti-roll pubs: Front – 1.4mm (1.2mm, 1.6mm & 1.8mm choice only)
• Ackermann: Adjustable
• Bump steer: Adjustable
• Steering: Centrally-positioned double steering system

Body, Tires, Wheels & Misc

• Body: XRAY XB2 body
• Tires: perhaps not included
• tires: not included - XRAY Aerodisk 12mm Wheel hex hub (choice just)

Adjustment Possibilities

• Standard modification: Camber, toe-in, caster, track width, wheelbase, kick-up, anti-squat, roll center, Ackermann, bump steer
• directions: Full-color manual with 3D pictures (40 pages)
• Set-up guide: perhaps not included. HUDY 2-color off road set-up guide (40 pages) may be set up in get component and in addition it shows 1/8 along road models in photographs included within it. Nevertheless the methodology and set-up concept are a similar for a number of contemporary 1/10 off road vehicles.
• Packaging: Carton package with artificial bags with parts
• Additionally included: HUDY Graphite Grease, Silicone oils, Authentication Certificate, Parts list & Exploded view, Decals

Things perhaps not included

•   Radio system (transmitter and receiver), steering servo, engine, pinion gear, LiPo battery power packages, speed controller, charger, tires, inserts, double-sided tape, CA glue, bearing oil, medium-grade (blue) threadlock, universal device for many peanuts and turnbuckles and various tools
