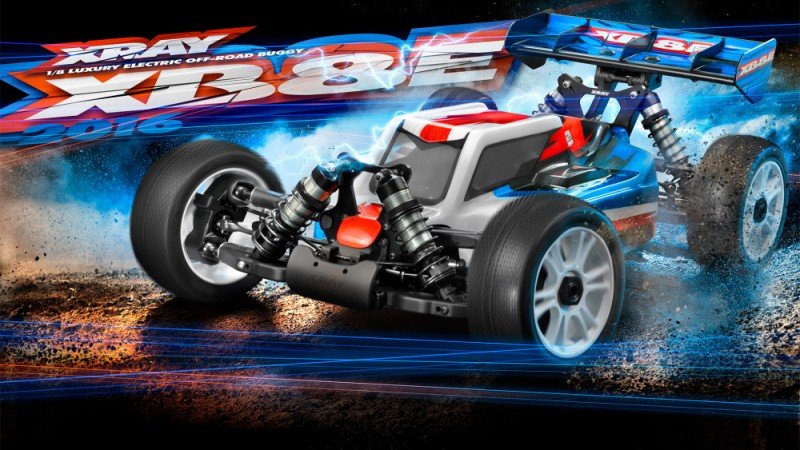

XRAY 350153 XB8E 2016 Specs - 1/8 Luxury Electric Off-Road Car  [XR-350153]

Dimensions

• Length: 500mm
• Chassis size: 399.5mm
• Wheelbase: 322~328mm
• Width: 310mm
• Weight: 2014g
• Approximate working fat: 3450g

Chassis

• Chassis: 3mm CNC-machined Swiss 7075 T6 hardcoated aluminum
• Receiver tray: CNC-machined 2.2mm graphite
• Radio example: Composite
• Front top deck: CNC-machined 2.5mm graphite
• Central diff top deck: CNC-machined 2.2mm graphite
• Braces: Composite braces (front part component / back)

Suspension

• Suspension: Pivot ball completely adjustable suspension
• Rear suspension system system system: Lower H-arm with adjustable top camber link
• Front suspension system system: Lower H-arm with adjustable top camber url A-arm
• Rear upright: Composite with dual supply mounting and 2 paid back roll center jobs and top aluminum dinner with 3 top roll center jobs
• Shocks: Big-bore shocks with various surprise pistons featuring Delrin™ pistons
• Shock towers: Front & rear 4.0mm alu

Drivetrain

• Type: Full-time shaft-drive 4WD w/ center differential
• Primary: steel spur gear / pinion
• Drive shafts: HUDY Spring metal™ CVD drive shafts
• Central shafts: HUDY Spring metal™ CVD drive shafts
• Differentials: Sealed, 6 gear, silicone-filled
• Bearings: Rubber-sealed

Gearing

• Pinion: 14T front part / rear
• Crown gear: 46T front / rear
• Pinion gear: perhaps not included (optional 12T~17T)
• Spur gear: 46T
• Primary ratio: 3.33
• Final gear ratio: 11.79

Body, tires, wheels & misc.

• Body: XRAY XB8'16 body
• Tires: not included
• tires: perhaps not included, standard 17mm hub

Modification possibilities:

• Standard modification: Camber, caster, toe-in, wheelbase, kick-up, anti-squat, paid off & top roll facilities, kingpin, Ackermann, bump steer, Multi-Flex™, fat security

Products maybe not included:

•   Electrical engine, Electronics (broadcast, Receiver, Steering Servo, Battery Pack, Speed Controller), Pinion gear, Wheels, Tires, Tools, Wheel device, Paint, Battery Charger, Bearing Oil, Threadlock, CA Glue, Universal item for many peanuts and turnbuckles, Set-up Book
