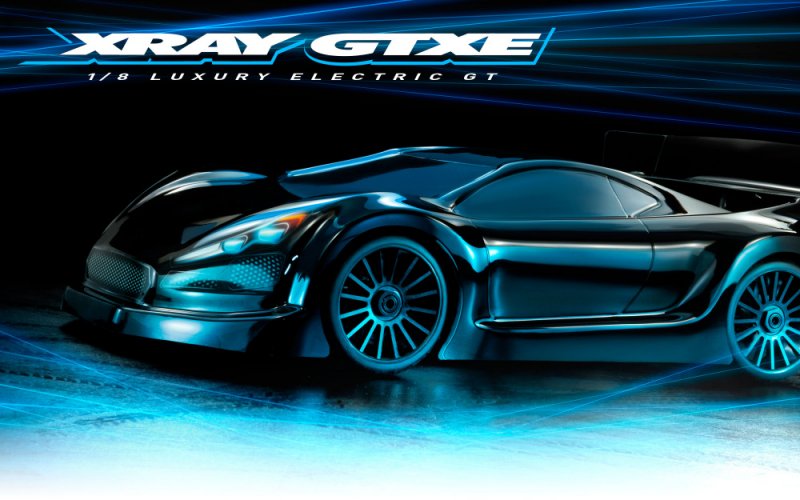

XRAY 350601 - Xray GTXE.2 - 1/8 Luxury Electric On-road GT Car  [XR-350601]

XRAY 350601 - Xray GTXE.2 - 1/8 Luxury Electric On-road GT Car
Price:
CAD$1,093.34
Brand:
XRAY
Model:
XR-350601
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - On-Road - Touring Cars - Nitro Powered category
Write a review
alt="XRAY 350601 - Xray GTXE.2 - 1/8 Luxury Electric On-road GT Car" title="XRAY 350601 - Xray GTXE.2 - 1/8 Luxury Electric On-road GT Car"
alt="XRAY 350601 - Xray GTXE.2 - 1/8 Luxury Electric On-road GT Car" title="XRAY 350601 - Xray GTXE.2 - 1/8 Luxury Electric On-road GT Car"
alt="XRAY 350601 - Xray GTXE.2 - 1/8 Luxury Electric On-road GT Car" title="XRAY 350601 - Xray GTXE.2 - 1/8 Luxury Electric On-road GT Car"
alt="XRAY 350601 - Xray GTXE.2 - 1/8 Luxury Electric On-road GT Car" title="XRAY 350601 - Xray GTXE.2 - 1/8 Luxury Electric On-road GT Car"
alt="XRAY 350601 - Xray GTXE.2 - 1/8 Luxury Electric On-road GT Car" title="XRAY 350601 - Xray GTXE.2 - 1/8 Luxury Electric On-road GT Car"

XRAY GTXE



Chassis

  • CNC-machined framework made out of 3mm top-quality Swiss 7075 T6 aluminum
  • Strategically machined for ultra-light fat and uncompromised energy & rigidity
  • Pre-drilled centerline holes become used with HUDY Chassis Balancing Tool
  • 1-piece, lightweight, easy-to-remove devices assembly
  • Front & rear framework braces for adjusting framework tightness & flex
  • Large, easy-access, molded battery pack plate
  • Super-strong diff bulkheads house the differentials and offer mounting points for suspension system system system mounts and surprise towers
  • Extra-thick, premium-grade graphite surprise towers consist of many shock mounting positions
  • Compact front part foam bumper made from high-resilience, lightweight foam
  • Front top bumper owner & paid composite bumper are molded from rigid composite to withstand difficult crashes



Motor

  • High-grade, CNC-machined 2-piece aluminum engine mount for easy gear mesh modification



Drivetrain

  • Conventional shaft-driven 4WD drivetrain
  • Front & rear gear differential with adjustable oil viscosity featuring 46T top gears and 14T pinion gears
  • Center solid axle
  • front component, right back, and primary CVD drive shafts created from HUDY Spring Steel™
  • Central outdrives work protective plastic footwear, thick 3mm pins, and a protective locking ring
  • Rubber-sealed composite differential housings with metal inserts.
  • Pressed metal inside diff gears, heat addressed & machined for ultra-high accuracy and smooth operation
  • Diff gears created from unique HUDY Gear Steel
  • Super-lightweight, hardened diff outdrives produced from HUDY Spring Steel™
  • Ultra-lightweight 17mm wheel hex drive hubs re CNC-machined from Swiss 7075 T6 black-coated aluminum
  • Full range 22 high-speed, lightly-oiled, blue-sealed ball-bearings make certain maximum efficiency
  • Solid shaft made from tough HUDY metal that is also heat addressed for additional power and endurance.
  • Central transmission outdrive adapters created from hardened steel gear adapter CNC-machined from Swiss 7075 T6 with for super-precise and wobble-free spur gear mounting



Suspension

  • Ultra-robust XRAY Pivot Ball Suspension XPBS™ with integral suspension system system system system geometry adjustment
  • Integrated Suspension Settings™ (I.S.S.) for fast & easy suspension system system geometry setting
  • Suspension hands with optimal size, level, freedom, geometry of suspension system system system system points, and product characteristics.
  • Super-lightweight composite steering obstructs + rigid Swiss 7075 T6 kingpin plate
  • Easily-settable kingpin dinner provides either 0° or 7° angle
  • Optional kingpin dishes available
  • Ultra-tiny composite back uprights + rigid Swiss 7075 T6 mounting plate
  • Extra-strong & robust front side component side component upper arms
  • Exclusive composite mixtures developed in-house by XRAY give you the right safety between reliability and performance
  • Turnbuckles created from unique blend of HUDY Spring Steel™ especially formulated for turnbuckles
  • Front & backside anti-roll bars made from springtime steel product



Steering

  • Dual-arm steering system with adjustable Ackermann
  • Swiss 7075 T6 aluminum steering plate
  • Quick & easy Ackermann and bump steer modification



Shocks

  • Big-bore shocks for ultimate reliability and performance
  • 18.5mm outer-diameter hardcoated shock bodies
  • Shock human body outside threading permits fast & effortless springtime preload adjustment
  • Ultra-precise big-bore 6-, 8- and 10-hole shock pistons created from Delrin™ product for smooth procedure and durability
  • Shock springs are yourself determined, chosen and matched into pairs to ensure exactly equal size and damping characteristics
  • HUDY Exclusive Silicone sebum are stated in nations in europe, and each batch of is laboratory tested and calibrated to be sure probably the most commitment and quality batch-to-batch. In line with the industry-standard cSt rating, the oils might a simple task to determine, adjust, and feel.



Body & Wing

  • XRAY self-designed GTX human anatomy (optional) made out of top-notch Lexan™ item features high-downforce areas for appropriate airflow and enhanced stability
  • Molded wing struts (3) for additional durability and superior mounting
  • High-strength wing



Assembly & Support

  • Premium 3D full-color Instruction Manual
  • Premium, unmatched XRAY on line support



Adjustment Possibilities:

The GTXE features fully-adjustable front side and back suspension system system system geometry. For fast & effortless modification, we suggest using set-up tools and add-ons from HUDY, the entire world frontrunner of RC tools.

The significant and impressive choice of modification possibilities includes:

  • Caster
  • Camber
  • Toe
  • Kick-up
  • Anti-dive
  • Anti-squat
  • Ride height
  • Downstops
  • Track-width
  • Roll centers
  • Bump steer
  • Wheelbase
  • Ackermann
  • Adjustable shocks
  • Adjustable front part component & right back diffs


All specs have reached the mercy of modification without previous notice. Pre-production model is shown, final specs may particularly vary. In some photos optional elements might shown. All option components are not included and may even be purchased independently. And of some aluminum elements can differ greatly from kit to kit and many with this kits cannot include all orange or black colored colored colored components as shown. A number of the excess elements or choice components might not be provided by when you should the orange or black colored colored color as shown. Your competition human body is had very much the same an alternative and it is actually maybe not in industry.



Proportions

Length:

510mm

Chassis size:

400mm

Wheelbase:

318~326mm

Width:

300mm

Bodyweight:

2155g

Approximate operating fat:

3320g



Chassis

Chassis:

3 mm CNC-machined Swiss 7075 T6 hardcoated aluminum

Broadcast tray:

CNC-machined 2.2mm graphite

Broadcast situation:

Composite

Front top deck :

CNC-machined 2.5mm graphite

Central diff top deck :

CNC-machined 2.5mm graphite

Braces:

Composite braces (front side part / backside)



Suspension System

Suspension System:

XPBS™ completely adjustable suspension system system

Right back suspension system system:

Lower H-arm with adjustable top camber connect a hands

Front suspension system system system:

Zero Kingpin suspension system system system ball suspension system system system , 0-7° kingpin meal

Straight back upright:

Composite with double supply mounting and 2 repaid roll center jobs and top aluminum supper with 4 top roll center functions and adjustable roll center height with adjustable shims

Shocks:

Big-bore shocks with various surprise pistons featuring Delrin pistons

Shock towers:

Front 3.5mm graphite, back 3.5mm graphite



Drivetrain

Kind:

Full-time shaft-drive 4WD

Principal:

Metal spur gear / pinion

Drive shafts:

HUDY Spring Steel™ CVD drive shafts

Central shafts:

HUDY Spring Steel™ CVD drive shafts

Differentials:

Sealed, 6 gear, silicone-filled

Bearings:

Rubber-sealed



Gearing

Pinion:

14T front side / back

Crown gear:

46T front side / back

Pinion gear:

Hardcoated aluminum 19T-24T

Spur gear:

Composite  48T, 49T, 50T



Body, Tires, Wheels & Misc

Body:

Optional #359730 GT Body not included

Tires:

Not included

Tires:

Maybe not included



Modification Possibilities

Standard Adjustment:

Camber, caster, toe-in, wheelbase,  kick-up, anti-squat, paid down & top roll facilities, kingpin, Ackermann, bump steer, Multi-Flex, fat security



Products Not Included

Electronics (broadcast, Receiver, Servo, Batteries, Speedo), Wheels, Tires, Tools, Wheel product, , , Paint, Charger, Universal device for several peanuts and turnbuckles, Set-up guide.

Remark :
Due to limited stock availability, please notice that some XRAY items may have to order from the factory and the ready time is around 4-6 weeks. Customer purchases the item is assumed to accept the waiting time which allows us to order directly from the manufacturer if the item is out of our warehouse.
