XRAY 351123 XT8 3mm Swiss 7075 T6 Aluminum Chassis - Hard Coated  [XR-351123]

Track-focused stability from XRAY 351123 XT8

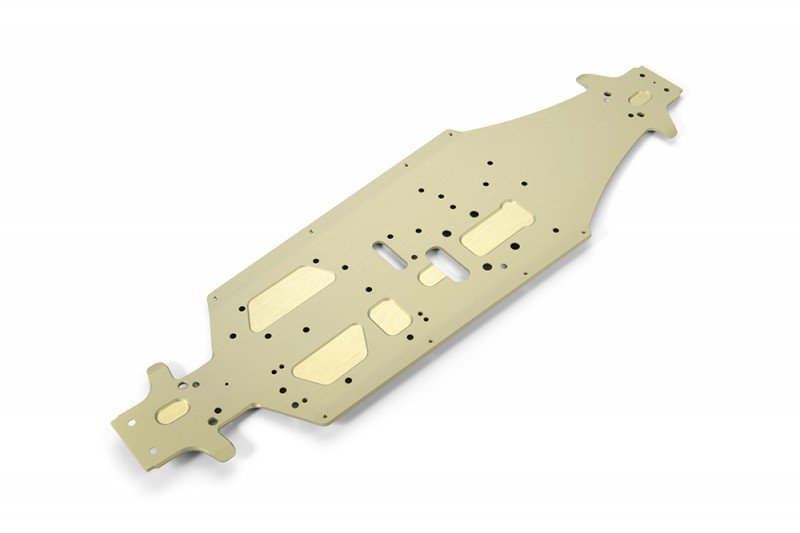

The XRAY 351123 XT8 Aluminum Chassis is built to refine weight placement and vehicle attitude for more consistent lap times. Fabricated from Swiss 7075 T6 aluminum and hard-coated at 3mm thickness, this plate adds stiffness and impact resistance for competitive use.

Front-biased weight layout for improved cornering

The chassis shifts mass slightly forward to promote rotation and tighter turn-in. That front bias helps with corner speed, jump recovery and overall vehicle balance while maintaining even side-to-side distribution for consistent behaviour on straights and landings.

CNC precision and targeted material removal

CNC machining removes non-critical material under areas like the engine and fuel tank to lower the centre of gravity and tune chassis flex. The result is a deliberate stiffness profile that supports aggressive driving without compromising key mounting points.

Understanding aluminum characteristics

Swiss 7075 T6 offers high rigidity, but small surface cracks can appear around cutouts or edges as a result of tension from machining. These marks are generally cosmetic and do not impair structural performance. Slight longitudinal bowing can also occur and is a normal property of machined aluminum plates.

For racers prioritising steady handling and a stiff base, the XRAY 351123 XT8 Aluminum Chassis provides a reliable platform for setup tuning.
